OEM Industrial Keyboard

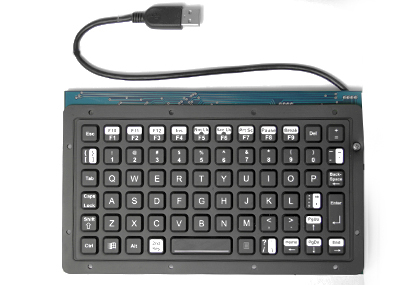

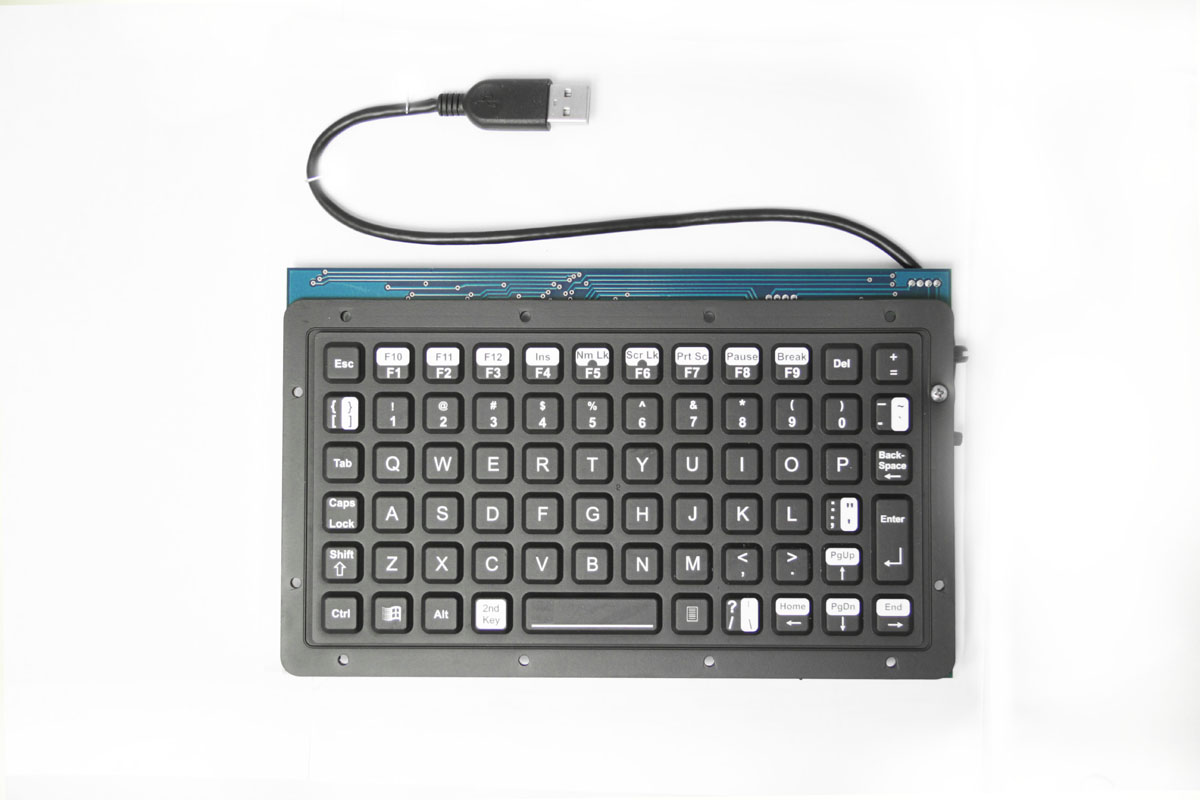

KI6800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
Product Information
The KI6800 Series are rugged, NEMA 4 (IP66) sealing, industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These mini keyboards use CTI's advanced designs for sealing and reliability, are molded of silicone rubber and have 2 mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
These OEM keyboards are a perfect fit for custom panels, and are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts.
This series is also available as an illuminated keyboard; for areas with low level lighting.
CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
Specifications
KI6800 Series OEM Keyboard Specification
Industrial Keyboards without Mouse PointerAnodized beige or black aluminum enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY)
Serial, PS/2, or USB Interface with optional Bulkhead Cable
Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer or Gray Elastomer
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
Electro Static Discharge (ESD) rated to 15KV
KI6800 Industrial Keyboard Specification Data Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing

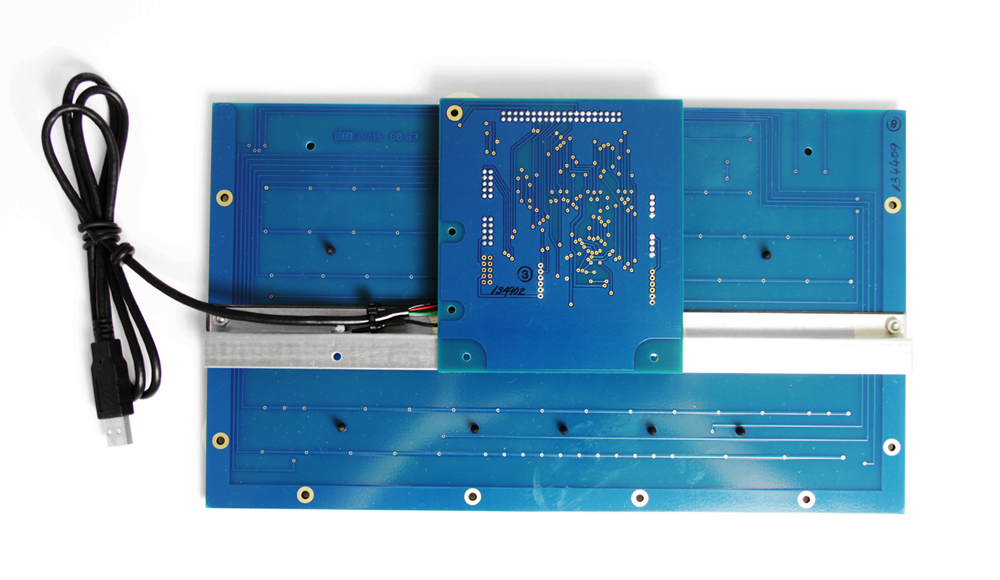

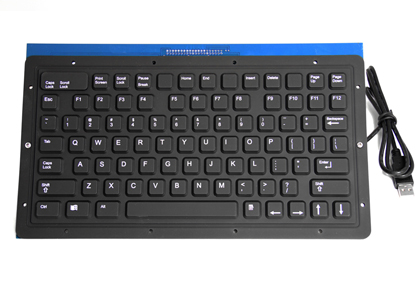

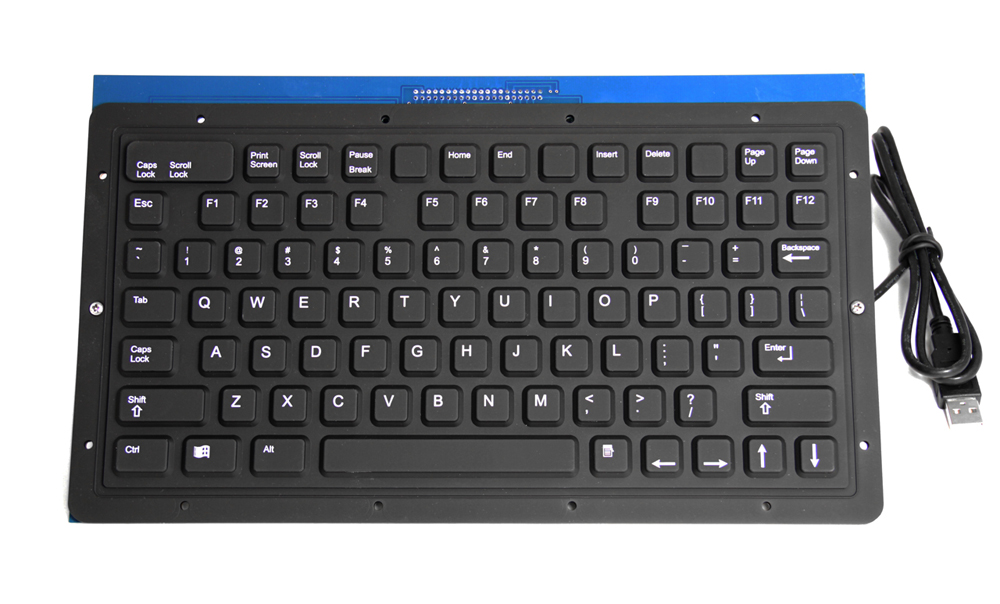

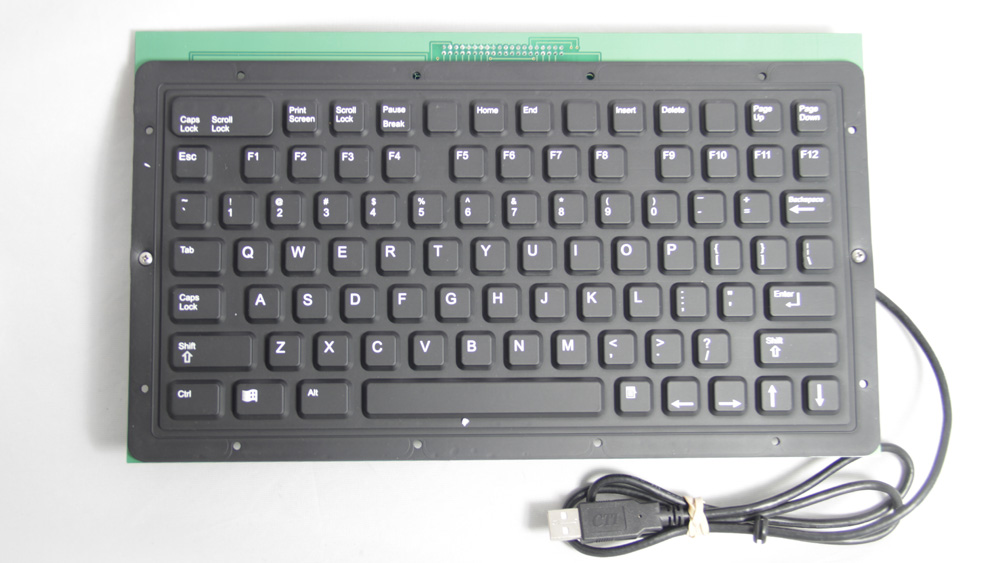

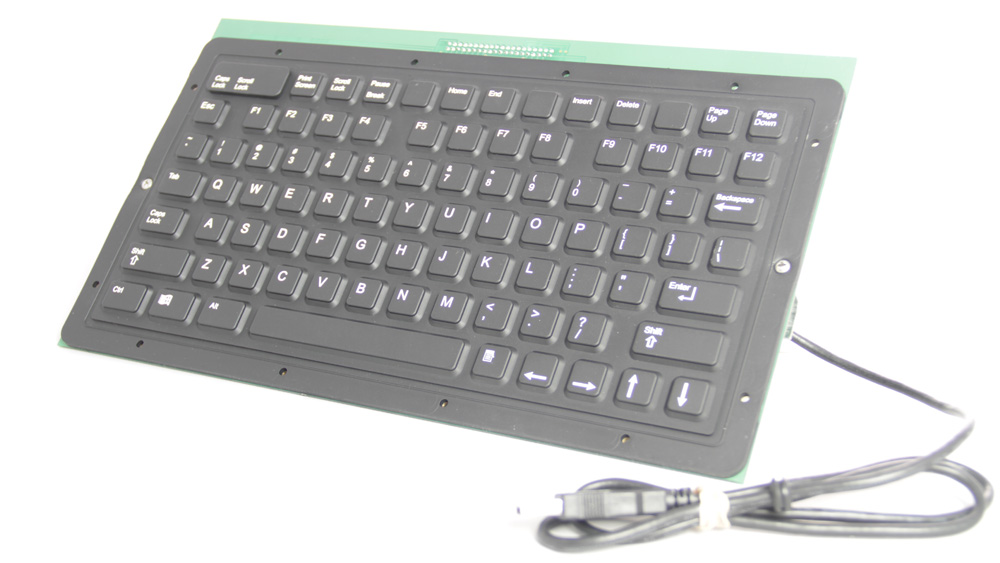

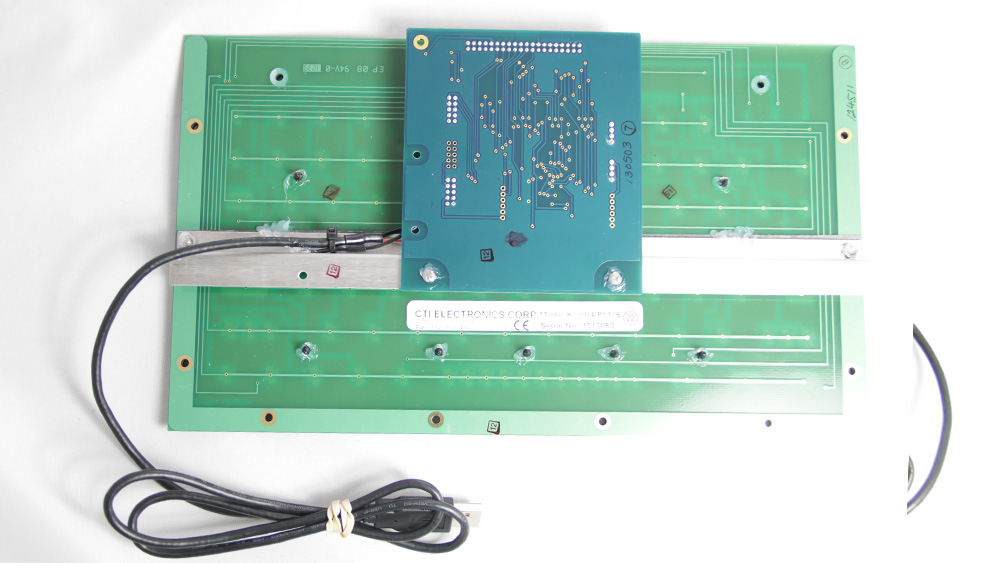

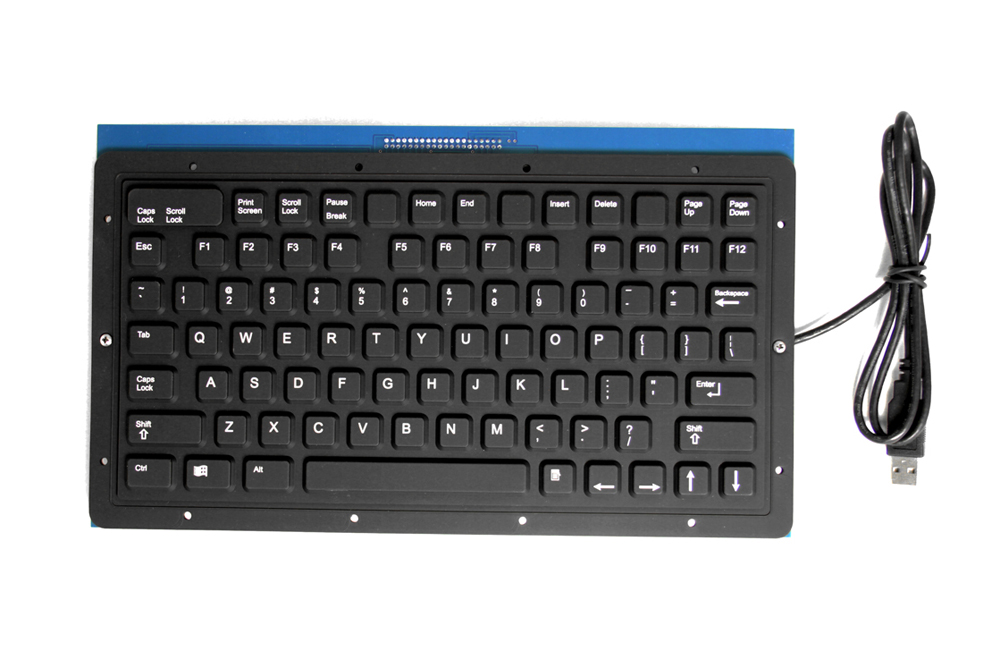

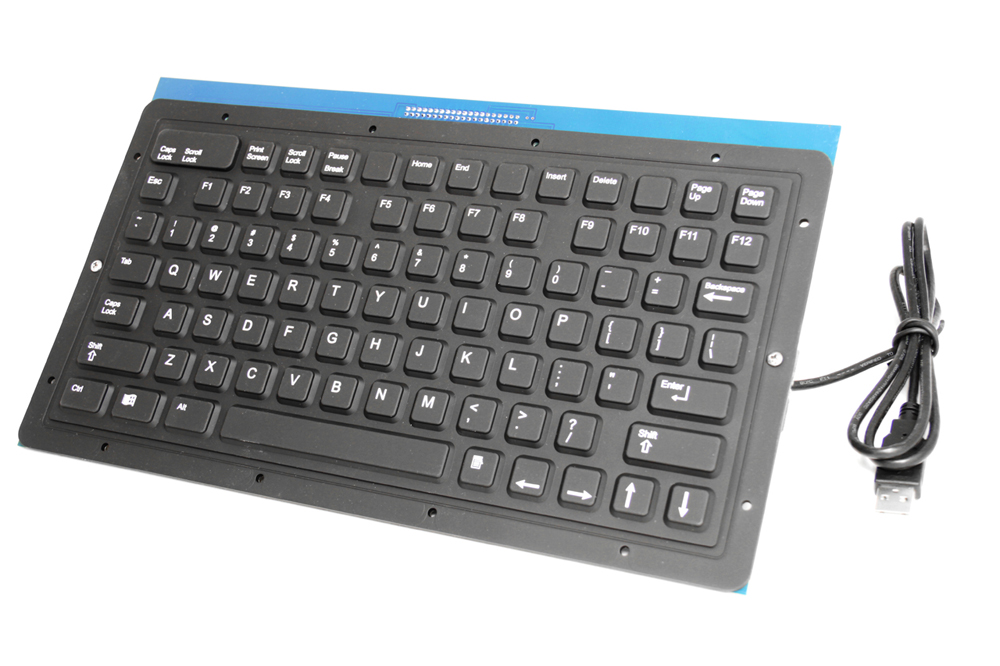

KI8800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
Product Information
The KI8800 Series are ruggedized, NEMA 4 (IP66) sealing, industrial keyboards with full 101/104 key functionality in a full size design. These OEM keyboards use CTI's advanced designs for sealing and reliability, are molded of silicone rubber and have 2 mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
These OEM keyboards are a perfect fit for custom panels, and are an excellent solution for use in wash down areas; such as food processing, medical laboratories and machining factories.CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
KI8800 Industrial Keyboards Technical Drawing KI8800 Industrial Keyboard Product Data Sheet How to select an Industrial Keyboard
KI8800 Series OEM Industrial Keyboard CAD Drawing (CAD DWG) Page 1 KI8800 Series OEM Industrial Keyboard CAD Drawing (CAD DWG) Page 2
KI8800 Series OEM Industrial Keyboard 3D Drawing (3D STEP)
Specifications
KI8800 Series OEM Keyboard Specification
Industrial Keyboards without a Mouse PointerAnodized aluminum in beige
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)
Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
KI8800 Industrial Keyboard Specification Data Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing

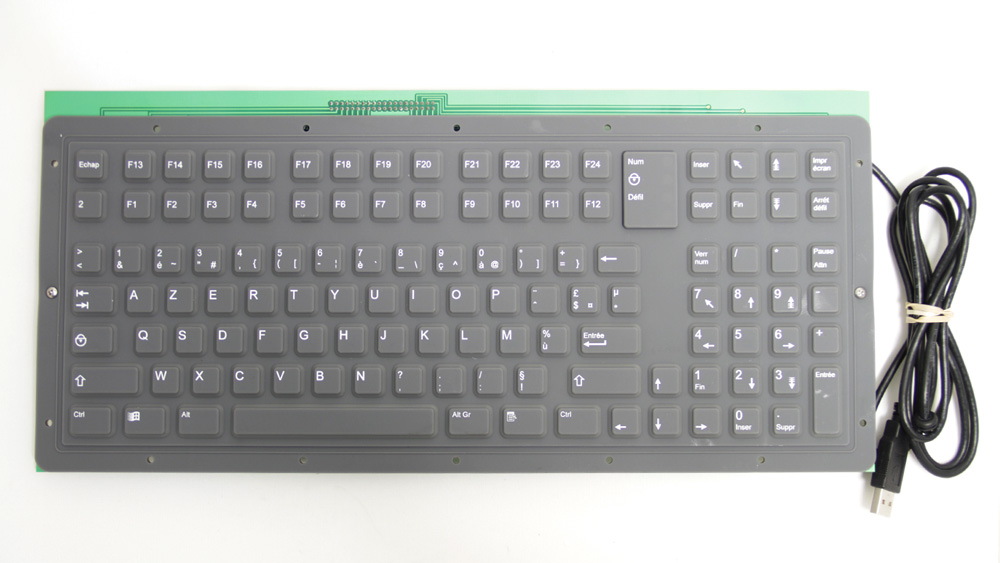

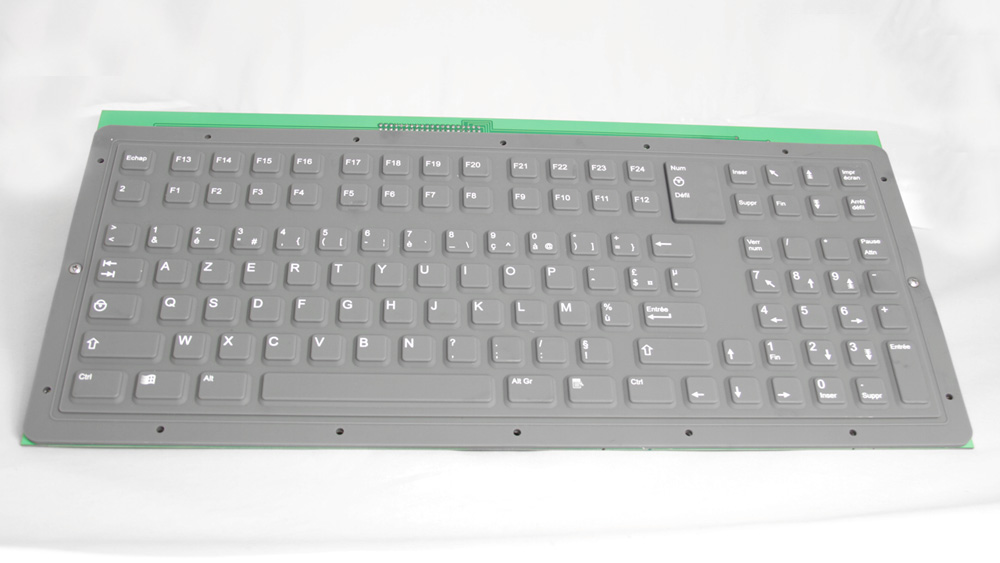

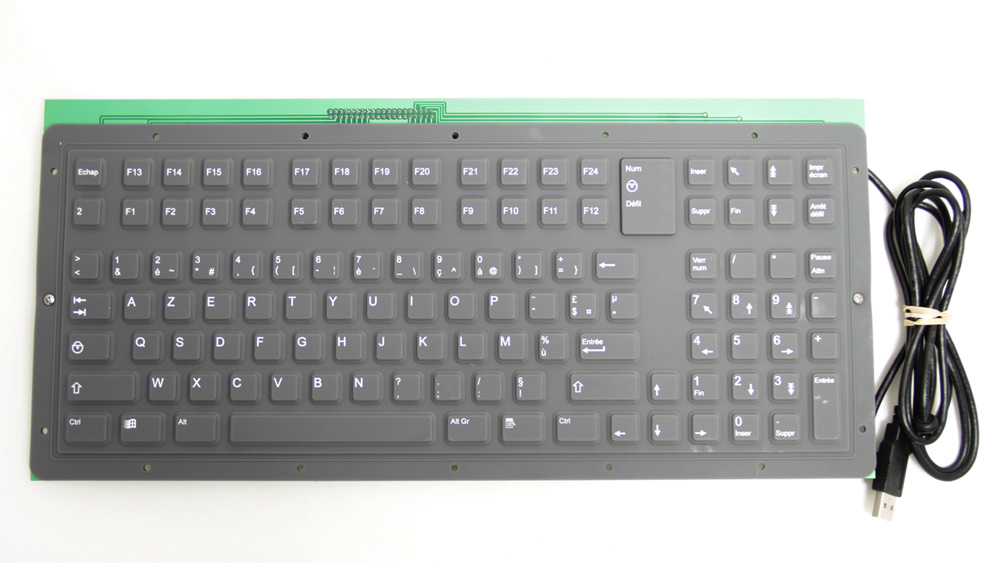

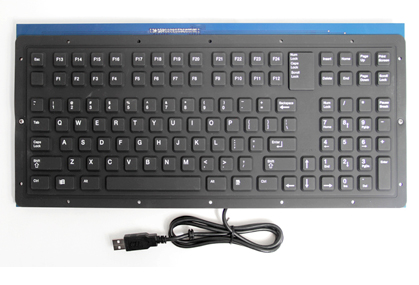

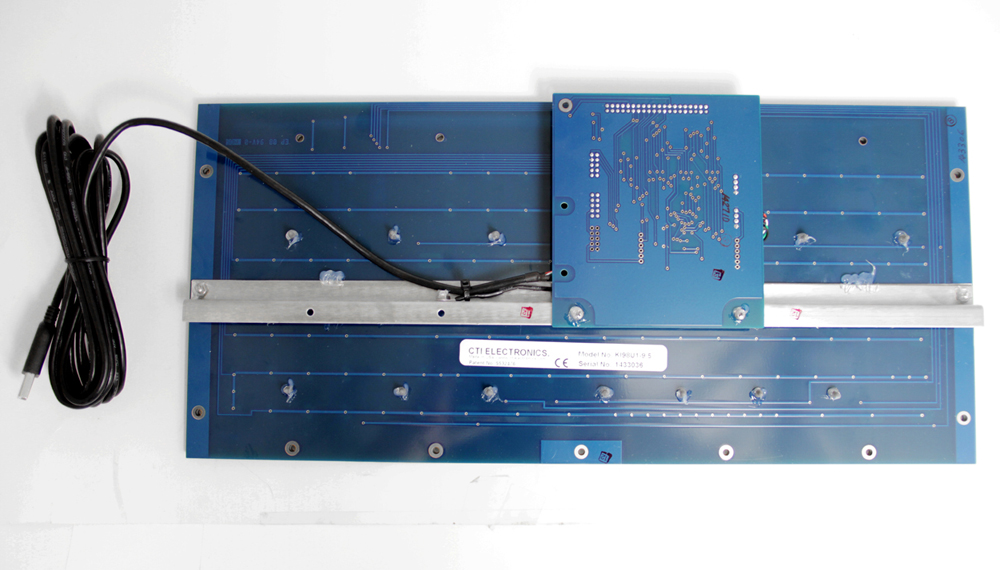

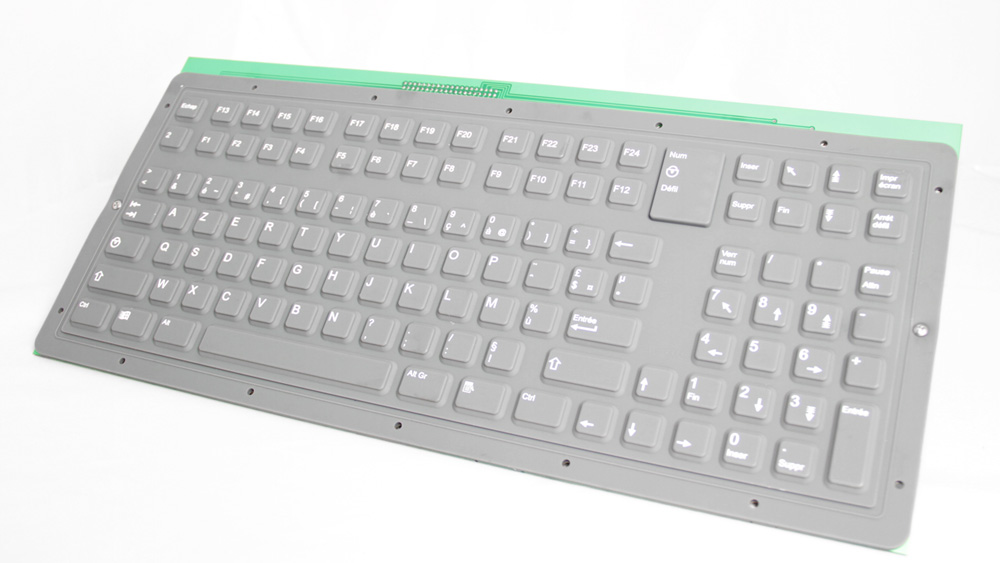

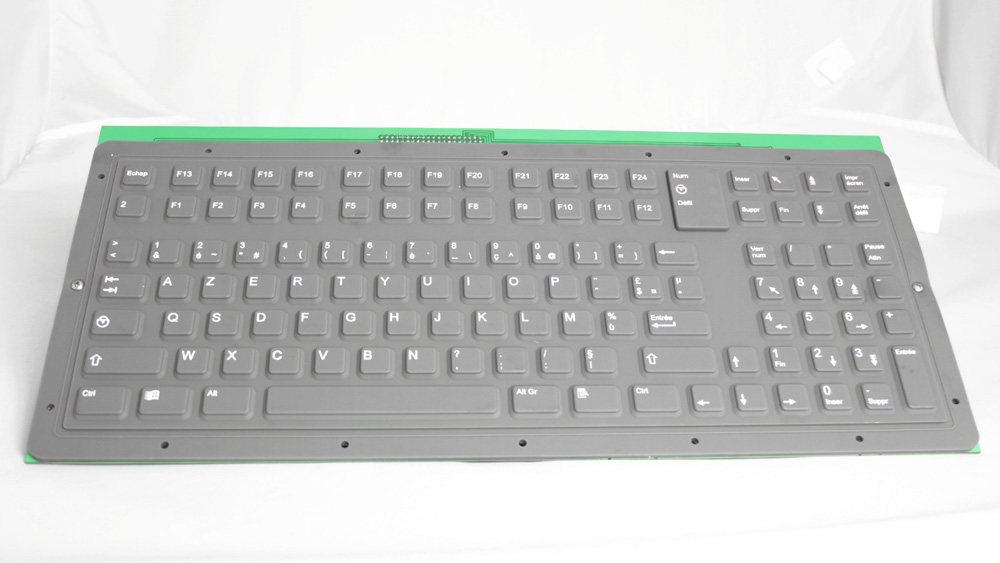

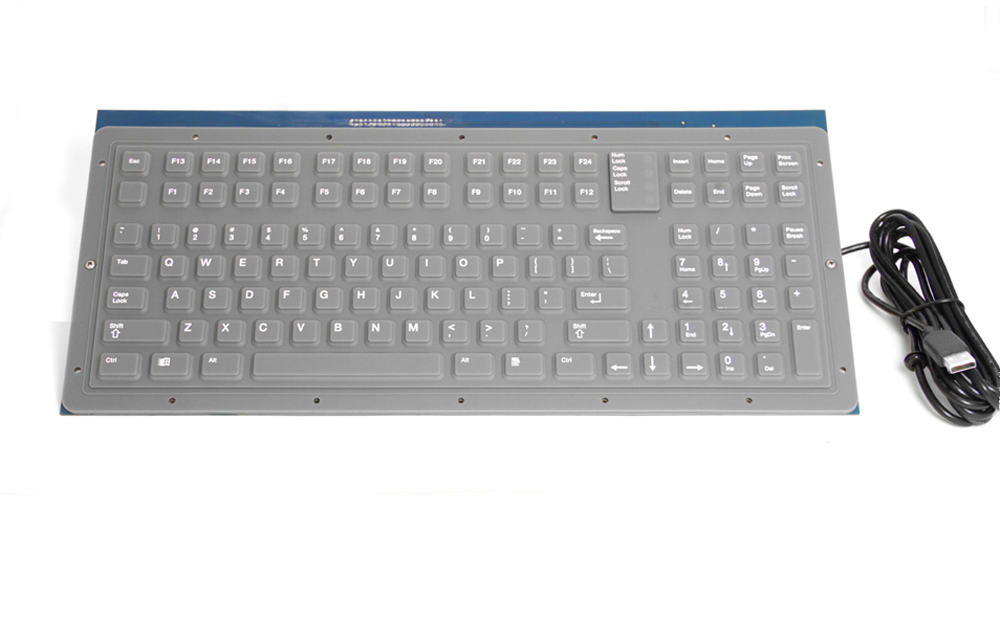

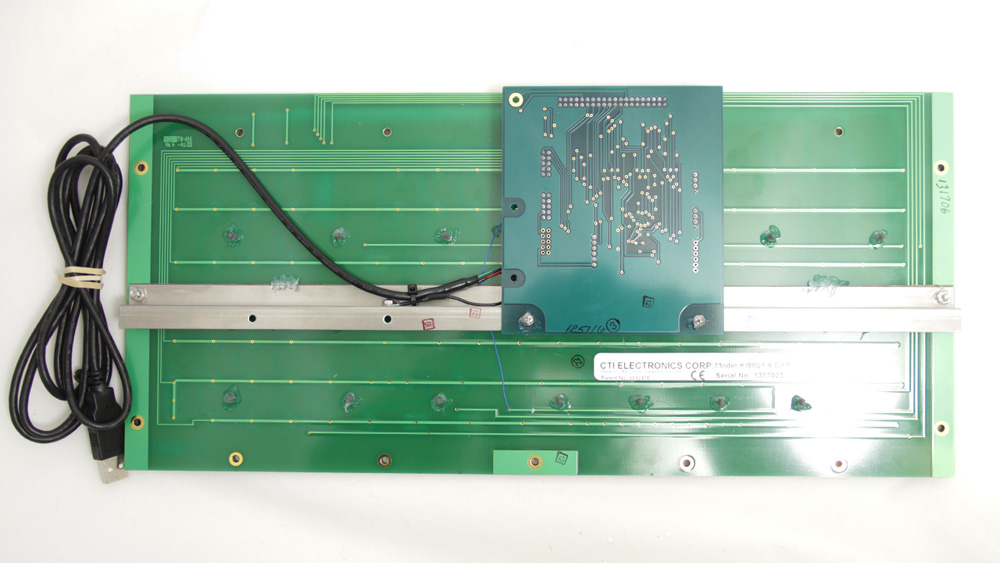

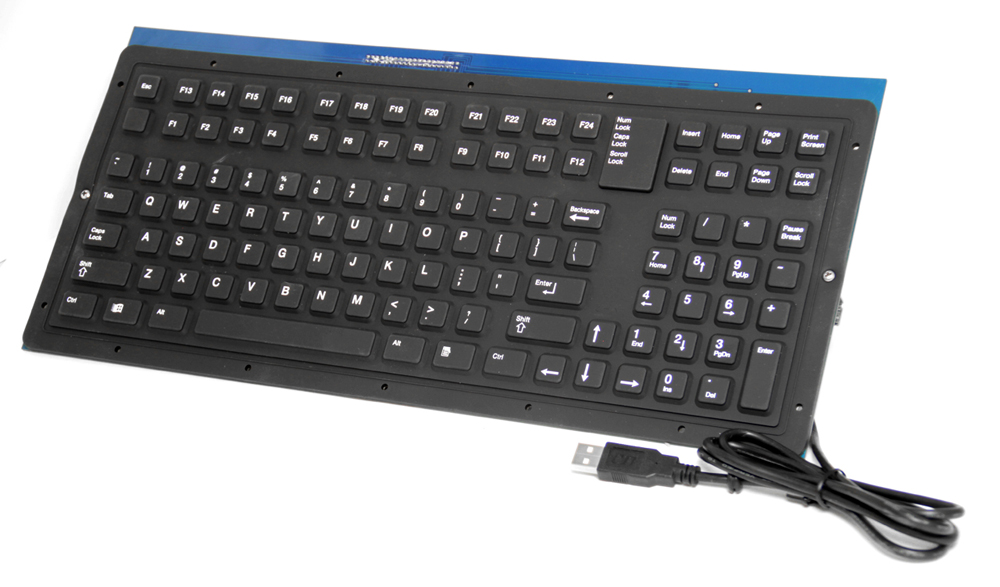

KI9800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
Product Information
The KI9800 Series are full size, NEMA 4 (IP66) sealing keyboards with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. These rugged, OEM keyboards use CTI's advanced designs for sealing and reliability, are molded of silicone rubber and have 2 mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
These OEM input devices are a perfect fit for custom panels, and are an excellent solution for use in wash down areas; such as food processing, medical laboratories and machining factories.
CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
KI9800 Industrial Keyboards Technical Drawing KI9800 Industrial Keyboard Product Data Sheet How to select an Industrial Keyboard
KI9800 Series Sealed OEM Keyboard CAD Drawing (CAD DWG) Page 1 KI9800 Series Sealed OEM Keyboard CAD Drawing (CAD DWG) Page 2 KI9800 Series OEM Industrial Keyboard 3D Drawing (3D STEP)Specifications
KI9800 Series OEM Keyboard Specification
Industrial Keyboards without a Mouse PointerAnodized aluminum in beige
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel

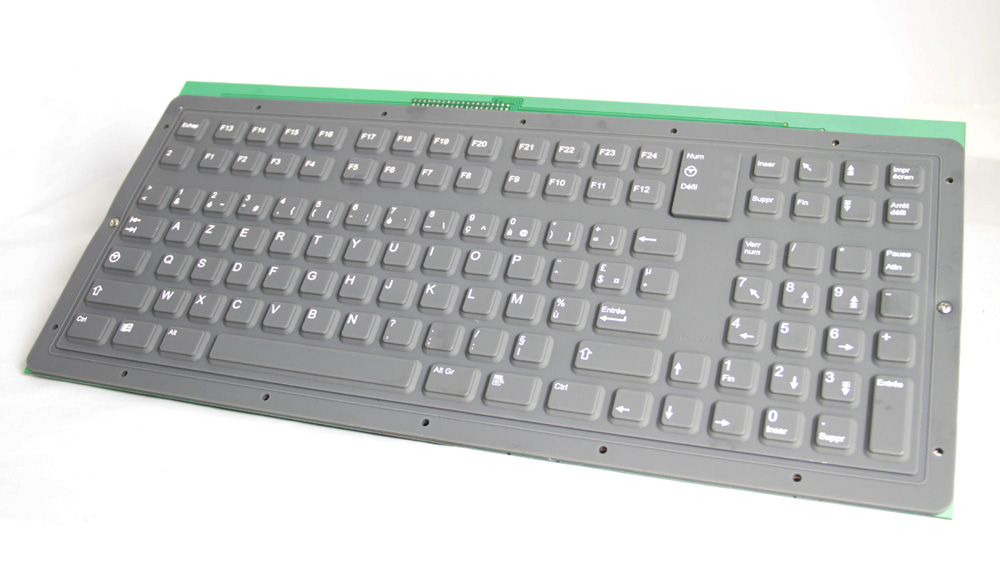

Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)
Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
KI9800 Industrial Keyboard Specification Data
Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing

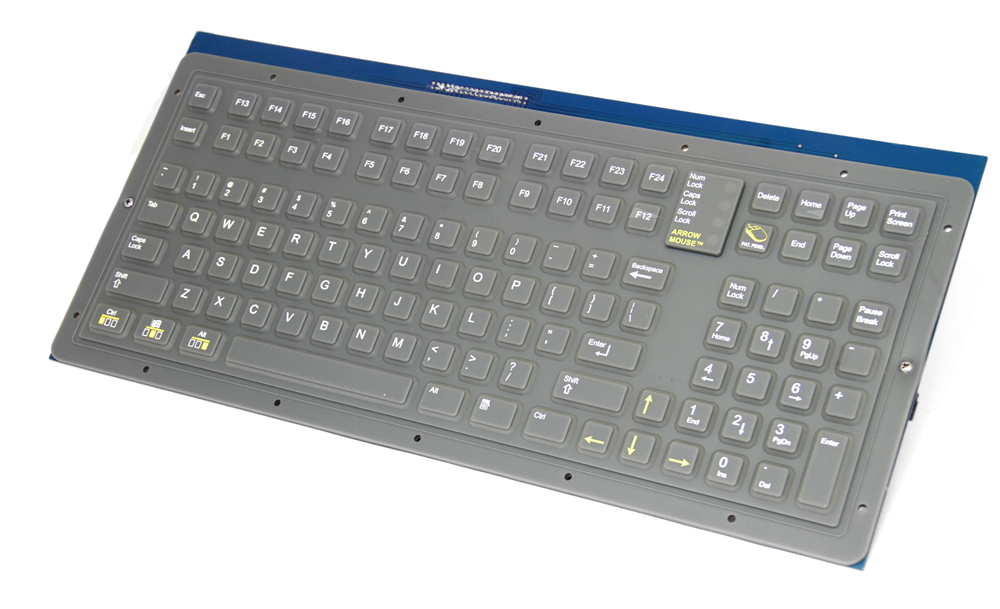

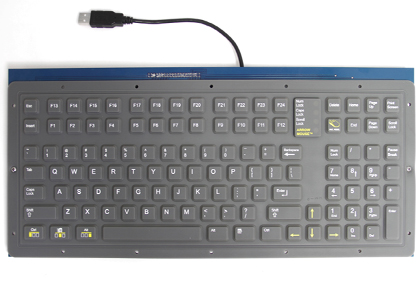

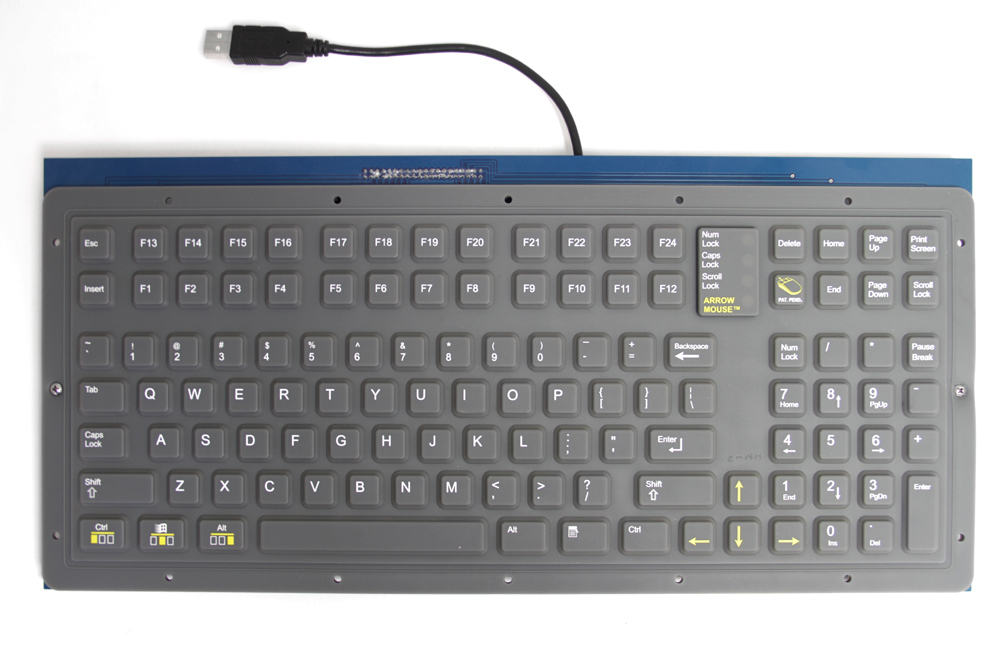

KIA9800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ ArrowMouse™
Product Information
The KIA9800 Series are full size, NEMA 4 (IP66) sealing keyboards with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. The KIA9800 Series combines CTI's rugged, industrial keyboard with its low profile, drift-free ArrowMouse™ mouse pointer. These industrial keyboards with
ArrowMouse™ mouse pointers offer high reliability and ease of use.
This series of OEM keyboards are a perfect fit for custom panels, and are an excellent solution for use in wash down areas; such as food processing, medical laboratories and machining factories.
CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
Specifications
KIA9800 Series OEM Keyboard Specification
Industrial Keyboards with ArrowMouse™ Mouse PointersAnodized aluminum powder coated beige or stainless steel enclosure
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
ArrowMouse™ (Arrow Key Mouse Cursors)
Serial, PS/2, or USB Interface with optional Bulkhead Cable
Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. CTI uses a minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on our keyboard switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant ESD rated to 15KV
KIA6800 Industrial Keyboard Specification Data
Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing

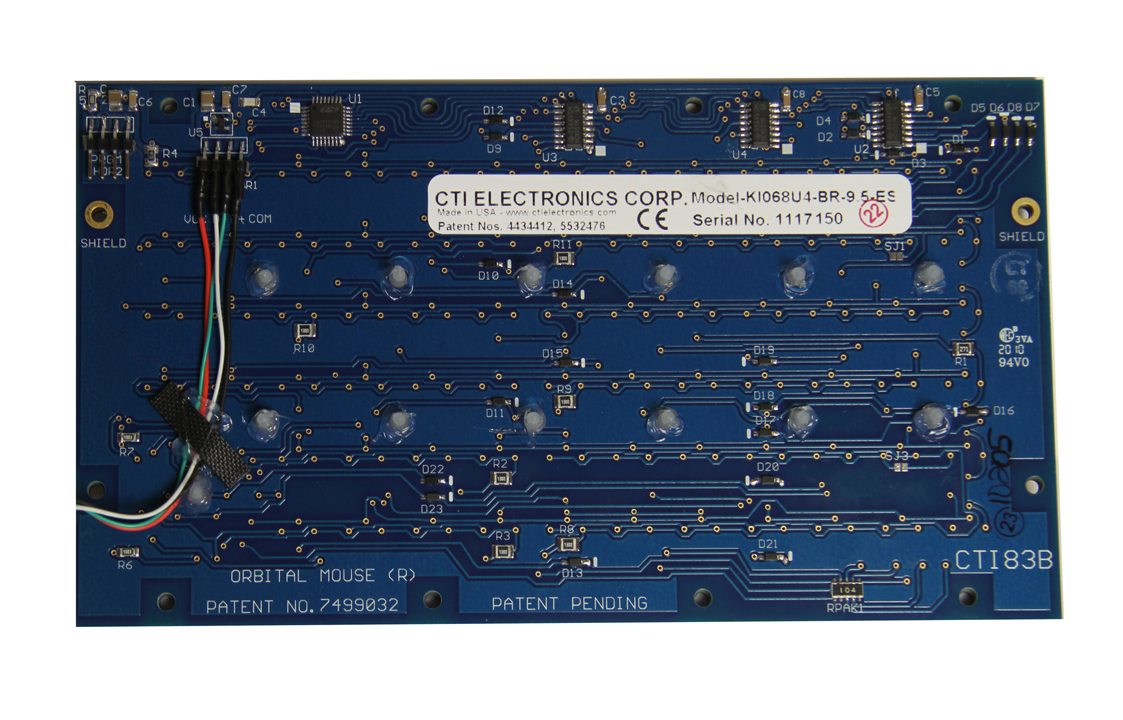

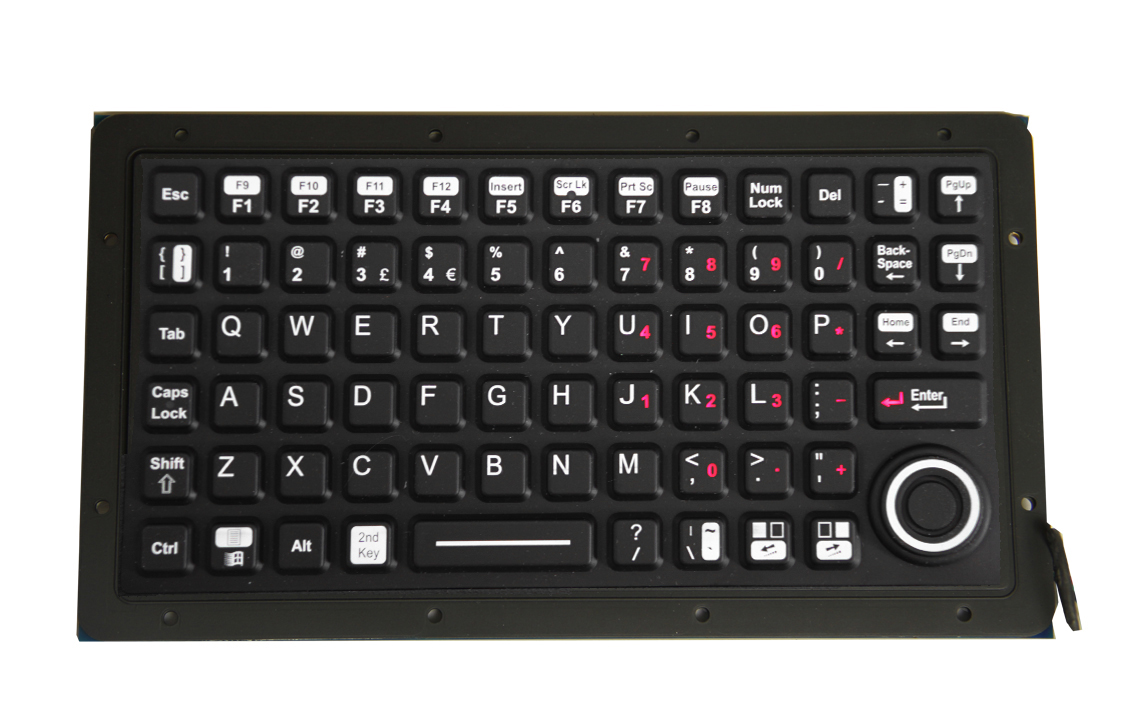

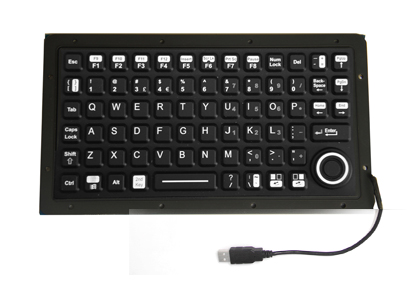

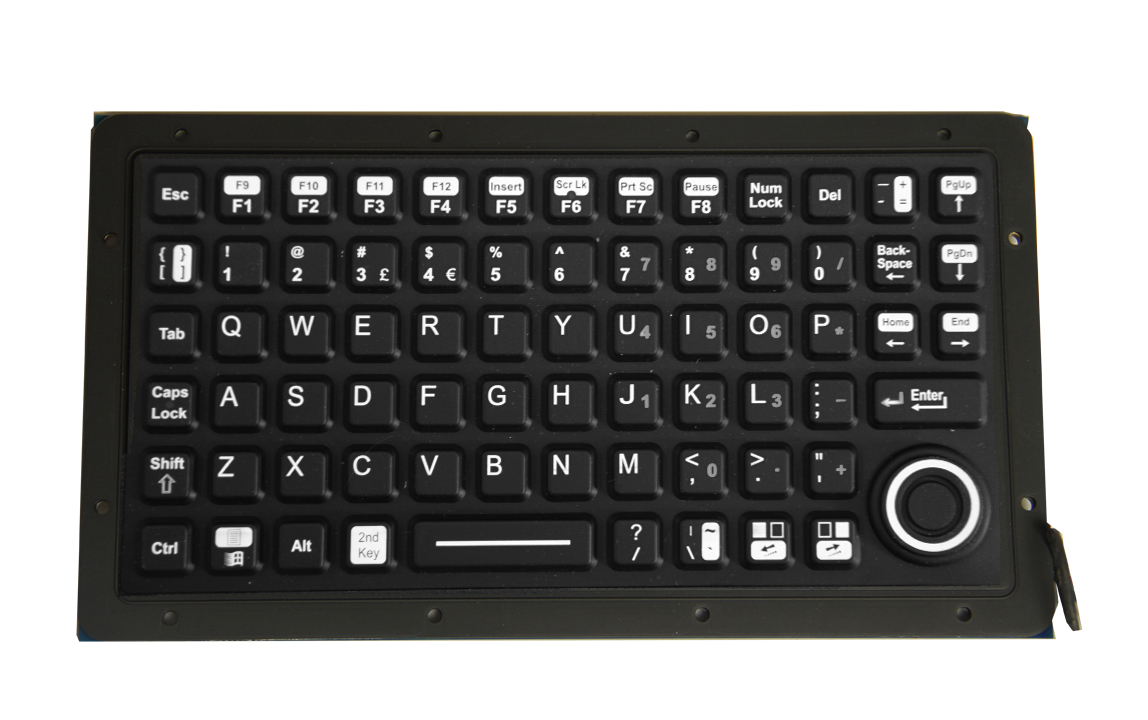

KIO6800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ OrbitalMouse®
Product Information
The KIO6800 Series are NEMA 4 (IP66) sealing industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print. These miniature keyboards include an embedded numeric keypad (patent pending), and are combined with CTI's trackpad alternative the OrbitalMouse® button style mouse pointer.
CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad, the OrbitalMouse® also has 8 selectable mouse pointer speed curve control settings.
These OEM keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. These mini keyboards are a perfect fit for custom panels, and are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts. The KIO6800 Series is also available in anodized aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66).
CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
KIO6800 Miniature Keyboard w/ OrbitalMouse® Technical Drawing KIO6800 Industrial Keyboard Product Data Sheet KIO6000 OrbitalMouse® Mouse Cursors Speed Control Setup KIO6000 Series Key Symbol Quick Reference Guide How to select an Industrial Keyboard KIO6800 Series Industrial OEM Keyboard with OrbitalMouse® CAD Drawing (CAD DWG) KIO6800 Series OEM Industrial OEM Keyboard with OrbitalMouse® 3D Drawing (3D STEP)
Specifications
KIO6800 Series OEM Keyboard Specification
Industrial Keyboards with OrbitalMouse® Mouse PointersAnodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)

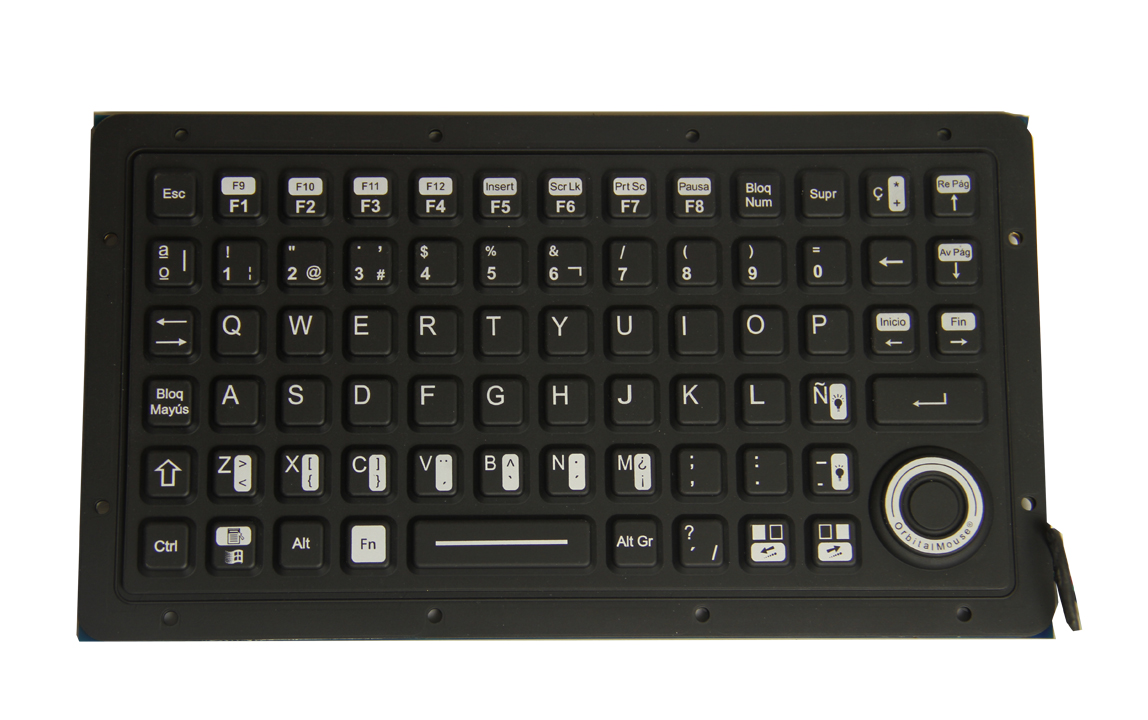

Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Black Elastomer standard
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368
KIO6800 Industrial Keyboard Specification Data
Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing

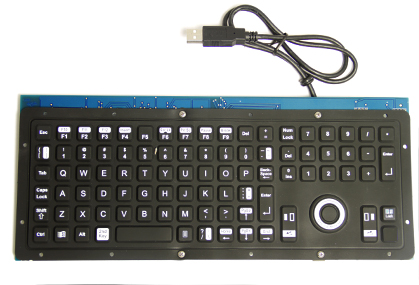

KIO7800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ OrbitalMouse®
Product Information
The KIO7800 Series are NEMA 4 (IP66) sealing industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These rugged keyboards include 12 function keys, a separate numeric keypad, and are combined with CTI's touchpad alternative OrbitalMouse® button style mouse pointer.
CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad, the OrbitalMouse® also has 8 selectable mouse pointer speed curve control settings.These OEM industrial keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. This series is designed for continuous use in harsh environments, and is also available as anilluminated keyboard; for areas with low level lighting.
CTI's custom OEM keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's OEM keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
KIO7800 Industrial Keyboards Technical Drawing KIO7800 Industrial Keyboard Product Data Sheet KIO7000 OrbitalMouse® Mouse Cursors Speed Control Setup KIO7000 Series Key Symbol Quick Reference Guide How to select an Industrial Keyboard KIO7800 Series Industrial OEM Keyboard with OrbitalMouse® CAD Drawing (CAD DWG) KIO7800 Series OEM Industrial OEM Keyboard with OrbitalMouse® 3D Drawing (3D STEP)
Specifications
KIO7800 Series OEM Keyboard Specification
Industrial Keyboards with OrbitalMouse® Mouse PointersAnodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY) legend
PS/2, or USB Interface with optional Bulkhead Cable
Features
Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Gray Elastomer standard
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA
Reliability
| MTBF (Mean Time between Failures): | Electronics is greater than 100,000 hours |
| Operating Temperature: | -40º to 80º C |
| Storage Temperature: | -40º to 80º C |
| Shock rating: | 50g 11msec. half sine, three axes |
| Vibration: | 10-55 Hz@ 0.013 DA |
| Elastomer keys: | Rated for up to 10 million cycles |
| Contact Keys: | "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts. |
NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available
Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368
KIO7800 Industrial Keyboard Specification Data
Pricing
OEM Industrial Keyboard Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial Keyboard Pricing
Manufactured in U.S.A.
