OEM Industrial Miniature USB Keypads

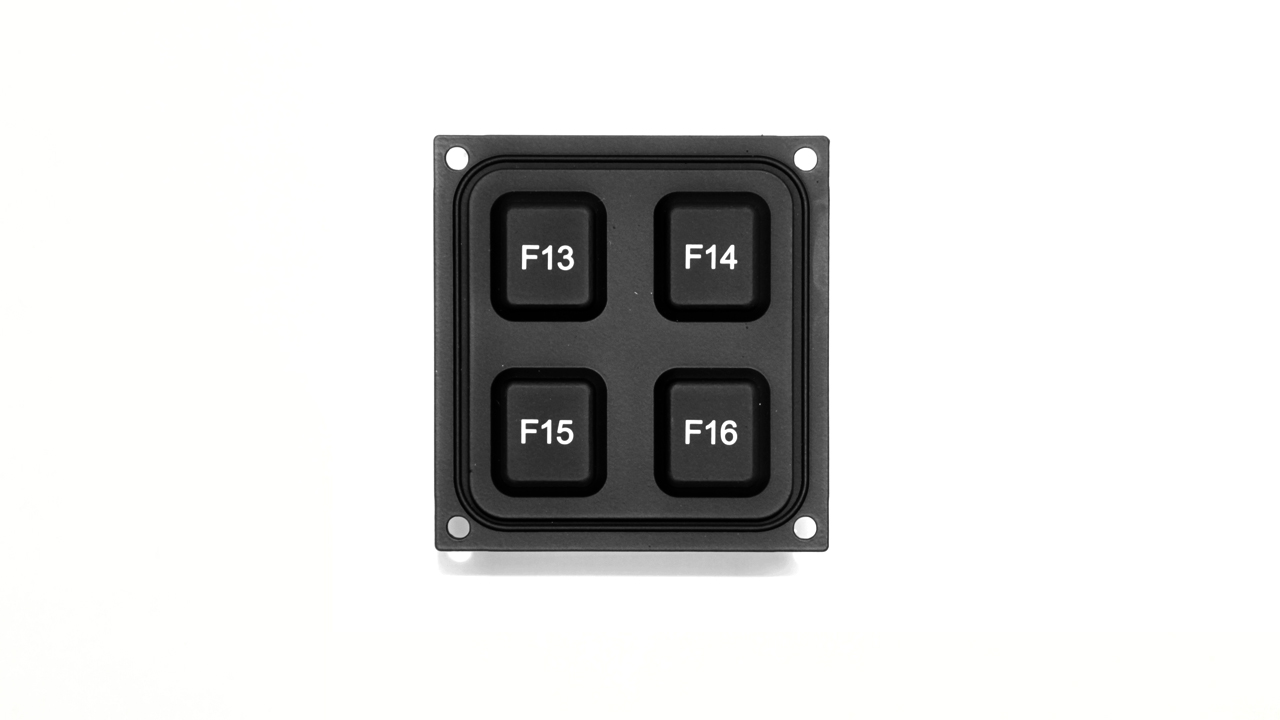

KP4000 Series 4-Button OEM Industrial USB Keypad (F13 - F16)
NEMA 4 (IP66) OEM Four-Button Miniature Keypad
Product Information
This four button OEM USB keypad offers design engineers a convenient user interface for implementing new software application features. A Software Application Developer can utilize the pre-defined codes outlined in the USB Specification Standard that are available through API libraries of the USB HID Compliant Keyboard Device Driver on a Windows OS® platform. Most keyboards manufactured today only offer the Function 1 (F1) through Function 12 (F12) keys, thus some operation systems (i.e. Windows OS®) and software applications do not take advantage of the Function 13 (F13) through Function 16 (F16) keys. The F13 through F16 keys have pre-defined, unique, codes available via the USB HID Compliant Keyboard Device Driver (USB HID Usage ID HEX Codes 68, 69, 6A, 6B) that can be implemented to provided additional functions for a software application.
CTI's miniature USB keypads when installed provide a NEMA 4 (IP66) watertight sealing protection. CTI's specially formulated SYN-Proof™ coating provides the silicone rubber keypad with additional protection against harsh oils and solvents. The design of these miniature USB keypads ensures years of reliable service and durability through the use of hard carbon pill contacts molded into the silicone rubber elastomer with a thick layer of hard gold plated onto the printed circuit board. With an operating temperature range of -40°C to +80°C (-40°F to +176°F) these miniature USB keypads have been ruggedized to meet aerospace, marine, medical, and military standards. When properly installed these USB keypads can meet MIL-STD-167-1 (protection against vibration), MIL-STD-901D (protection against shock), MIL-STD-461F (high EMI/RFI levels), MIL-STD-810G (protection against humidity, fungus, and salt spray), and MIL-HDBK-217F (MTBF is greater than 100,000 hours) as well as other international standards.
These miniature USB Keypads are implemented with CTIs modular design methodology thus allowing designers to take advantage of the same mounting hole patterns previously created by the use of CTIs OEM AP2000 Arrow Mouse™ and OEM OM20U2 Orbital Mouse® products.
Specifications
Industrial USB Keypad Specification
Industrial Miniature USB Keypad Features| MECHANICAL SPECIFICATION | |||
| KP4000 Dimensions | Width: 1.83" (46.48mm) | Height: 1.93" (49.02mm) | Below Panel: 0.43" (10.92mm) |
| Key Travel | 0.08" (2mm) | Key Cap Size | Width: 0.44" (11.18mm) | Height: 0.51" (12.95mm) |
| Keys | 4 silicone Rubber Keys with carbon pill | Actuation Force: 100g +/- 20G |
| MTBF | Greater than 100,000 hours (Hard gold plating) |
| Life Expectancy | 5VDC @ 50mA is 10,000,000+ activations | |
| SynProof™ Coated Elastomer is 10,000,000 + cycles | Paryelene Coated Elastomer is 10,000,000 + cycles (Option) | |
| Shock | Peak Value | 30-50g | Peak Duration | 11ms | Waveform | Half-Sine |
| Vibration | Frequency / Displacement |
5-25 Hz / 0.1" | 25-55 Hz / 0.03" |
| ENVIRONMENTAL SPECIFICATION | |||||||||||||
| Operating Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Storage Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Relative Humidity | 100% (properly installed) | ||||||||||||
| Sealing Rating | NEMA 4 (IP66) Watertight (properly installed) | ||||||||||||
| Elastomer Coating | SynProof™ Coating | Paryelene Coating | |||||||||||
| PCB Coating | Conformal Coating | ||||||||||||
| CONFORMANCE / CERTIFICATION / COMPLIANCE | |||||||||||||
| U.S.A Standards | U.S. FCC 47 CFR 15 Class A & B | RF Emissions Compliant 8Kv (Contact), 15Kv (Air) | |||||||||||
| MIL-STD-461F | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| MIL-STD-810G | Protection against humidity, fungus, and salt spray Conformance | ||||||||||||
| MIL-STD-910D | Protection against shock Conformance | ||||||||||||
| MIL-STD-671-1 | Protection against vibration Conformance | ||||||||||||
| MIL-STD-1427G | Human Factors Conformance | ||||||||||||
| MIL-I-45208 | Quality System Conformance | ||||||||||||
| IPC-A-610 | Acceptability of Electronics Assemblies Certification | ||||||||||||
| European Standards | "CE" Compliant | ||||||||||||
| Restriction of Hazardous Substance (RoHS) Directive Complaint | |||||||||||||
| Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant | |||||||||||||
| International Standards | IEC 61000-4-2 and EN61000-4-2 | ESD 8Kv contact and 15Kv air Conformance | |||||||||||
| IEC 61000-4-3 and EN61000-4-3 | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| IEC 61000-6-3 and EN61000-6-3 | Electromagnetic Compatibility Conformance | ||||||||||||
| IEC 60601-1 and EN60601-1 | Medical Device Design and Manufacture Conformance | ||||||||||||
| IEC 62353 and BS EN62353 | Medical Device Recurrent Testing Conformance | ||||||||||||
| subject to manufacturing options applied | |||||||||||||
Pricing
OEM Industrial USB Keypad Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial USB Keypad Pricing
KP4000 Series 4-Button OEM Industrial USB Keypad (F17 - F20)
NEMA 4 (IP66) OEM Four-Button Miniature Keypad
Product Information
This four button OEM USB keypad offers design engineers a convenient user interface for implementing new software application features. A Software Application Developer can utilize the pre-defined codes outlined in the USB Specification Standard that are available through API libraries of the USB HID Compliant Keyboard Device Driver on a Windows OS® platform. Most keyboards manufactured today only offer the Function 1 (F1) through Function 12 (F12) keys, thus some operation systems (i.e. Windows OS®) and software applications do not take advantage of the Function 17 (F17) through Function 20 (F20) keys. The F17 through F20 keys have pre-defined, unique, codes available via the USB HID Compliant Keyboard Device Driver (USB HID Usage ID HEX Codes 6C, 6D, 6E, 6F) that can be implemented to provided additional functions for a software application.
CTI's miniature USB keypads when installed provide a NEMA 4 (IP66) watertight sealing protection. CTI's specially formulated SYN-Proof™ coating provides the silicone rubber keypad with additional protection against harsh oils and solvents. The design of these miniature USB keypads ensures years of reliable service and durability through the use of hard carbon pill contacts molded into the silicone rubber elastomer with a thick layer of hard gold plated onto the printed circuit board. With an operating temperature range of -40°C to +80°C (-40°F to +176°F) these miniature USB keypads have been ruggedized to meet aerospace, marine, medical, and military standards. When properly installed these USB keypads can meet MIL-STD-167-1 (protection against vibration), MIL-STD-901D (protection against shock), MIL-STD-461F (high EMI/RFI levels), MIL-STD-810G (protection against humidity, fungus, and salt spray), and MIL-HDBK-217F (MTBF is greater than 100,000 hours) as well as other international standards.
These miniature USB Keypads are implemented with CTIs modular design methodology thus allowing designers to take advantage of the same mounting hole patterns previously created by the use of CTIs OEM AP2000 Arrow Mouse™ and OEM OM20U2 Orbital Mouse® products.
Specifications
Industrial USB Keypad Specification
Industrial Miniature USB Keypad Features| MECHANICAL SPECIFICATION | |||
| KP4000 Dimensions | Width: 1.83" (46.48mm) | Height: 1.93" (49.02mm) | Below Panel: 0.43" (10.92mm) |
| Key Travel | 0.08" (2mm) | Key Cap Size | Width: 0.44" (11.18mm) | Height: 0.51" (12.95mm) |
| Keys | 4 silicone Rubber Keys with carbon pill | Actuation Force: 100g +/- 20G |
| MTBF | Greater than 100,000 hours (Hard gold plating) |
| Life Expectancy | 5VDC @ 50mA is 10,000,000+ activations | |
| SynProof™ Coated Elastomer is 10,000,000 + cycles | Paryelene Coated Elastomer is 10,000,000 + cycles (Option) | |
| Shock | Peak Value | 30-50g | Peak Duration | 11ms | Waveform | Half-Sine |
| Vibration | Frequency / Displacement |
5-25 Hz / 0.1" | 25-55 Hz / 0.03" |
| ENVIRONMENTAL SPECIFICATION | |||||||||||||
| Operating Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Storage Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Relative Humidity | 100% (properly installed) | ||||||||||||
| Sealing Rating | NEMA 4 (IP66) Watertight (properly installed) | ||||||||||||
| Elastomer Coating | SynProof™ Coating | Paryelene Coating | |||||||||||
| PCB Coating | Conformal Coating | ||||||||||||
| CONFORMANCE / CERTIFICATION / COMPLIANCE | |||||||||||||
| U.S.A Standards | U.S. FCC 47 CFR 15 Class A & B | RF Emissions Compliant 8Kv (Contact), 15Kv (Air) | |||||||||||
| MIL-STD-461F | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| MIL-STD-810G | Protection against humidity, fungus, and salt spray Conformance | ||||||||||||
| MIL-STD-910D | Protection against shock Conformance | ||||||||||||
| MIL-STD-671-1 | Protection against vibration Conformance | ||||||||||||
| MIL-STD-1427G | Human Factors Conformance | ||||||||||||
| MIL-I-45208 | Quality System Conformance | ||||||||||||
| IPC-A-610 | Acceptability of Electronics Assemblies Certification | ||||||||||||
| European Standards | "CE" Compliant | ||||||||||||
| Restriction of Hazardous Substance (RoHS) Directive Complaint | |||||||||||||
| Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant | |||||||||||||
| International Standards | IEC 61000-4-2 and EN61000-4-2 | ESD 8Kv contact and 15Kv air Conformance | |||||||||||
| IEC 61000-4-3 and EN61000-4-3 | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| IEC 61000-6-3 and EN61000-6-3 | Electromagnetic Compatibility Conformance | ||||||||||||
| IEC 60601-1 and EN60601-1 | Medical Device Design and Manufacture Conformance | ||||||||||||
| IEC 62353 and BS EN62353 | Medical Device Recurrent Testing Conformance | ||||||||||||
| subject to manufacturing options applied | |||||||||||||
Pricing
OEM Industrial USB Keypad Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial USB Keypad Pricing

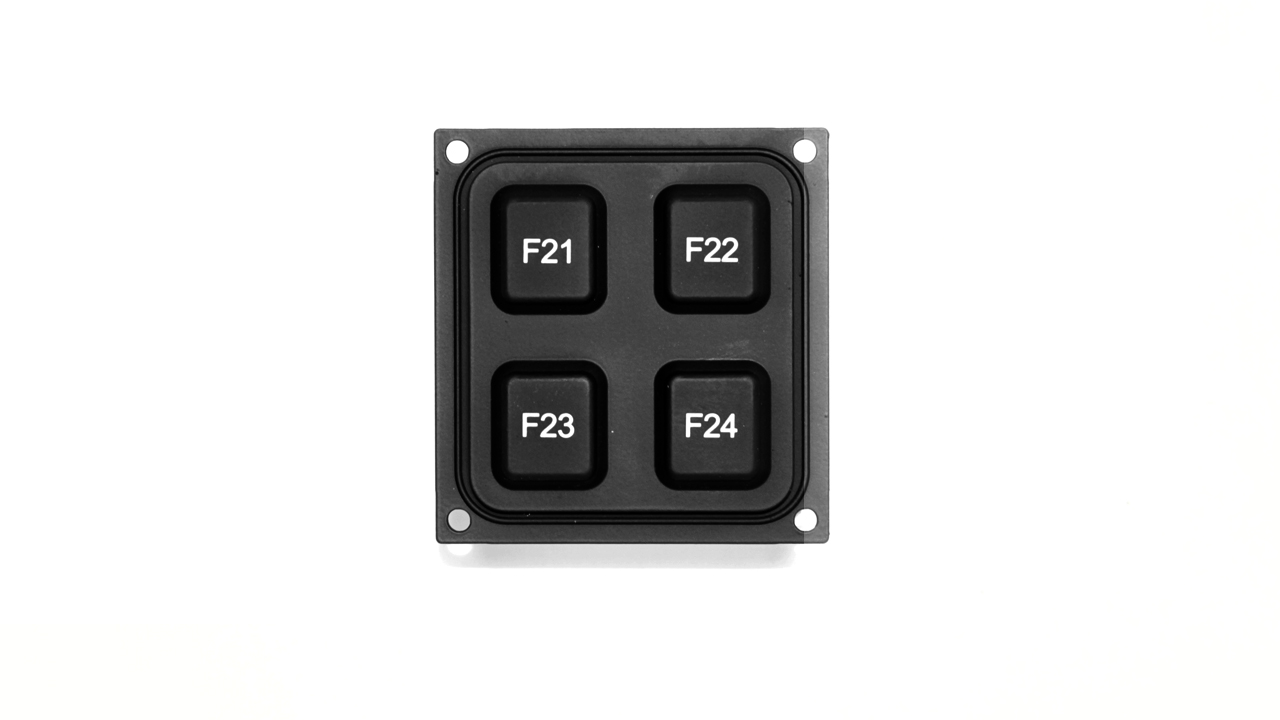

KP4000 Series 4-Button OEM Industrial USB Keypad (F21 - F24)
NEMA 4 (IP66) OEM Four-Button Miniature Keypad
Product Information
This four button OEM USB keypad offers design engineers a convenient user interface for implementing new software application features. A Software Application Developer can utilize the pre-defined codes outlined in the USB Specification Standard that are available through API libraries of the USB HID Compliant Keyboard Device Driver on a Windows OS® platform. Most keyboards manufactured today only offer the Function 1 (F1) through Function 12 (F12) keys, thus some operation systems (i.e. Windows OS®) and software applications do not take advantage of the Function 21 (F21) through Function 24 (F24) keys. The F21 through F24 keys have pre-defined, unique, codes available via the USB HID Compliant Keyboard Device Driver (USB HID Usage ID HEX Codes 70, 71, 72, 73) that can be implemented to provided additional functions for a software application.
CTI's miniature USB keypads when installed provide a NEMA 4 (IP66) watertight sealing protection. CTI's specially formulated SYN-Proof™ coating provides the silicone rubber keypad with additional protection against harsh oils and solvents. The design of these miniature USB keypads ensures years of reliable service and durability through the use of hard carbon pill contacts molded into the silicone rubber elastomer with a thick layer of hard gold plated onto the printed circuit board. With an operating temperature range of -40°C to +80°C (-40°F to +176°F) these miniature USB keypads have been ruggedized to meet aerospace, marine, medical, and military standards. When properly installed these USB keypads can meet MIL-STD-167-1 (protection against vibration), MIL-STD-901D (protection against shock), MIL-STD-461F (high EMI/RFI levels), MIL-STD-810G (protection against humidity, fungus, and salt spray), and MIL-HDBK-217F (MTBF is greater than 100,000 hours) as well as other international standards.
These miniature USB Keypads are implemented with CTIs modular design methodology thus allowing designers to take advantage of the same mounting hole patterns previously created by the use of CTIs OEM AP2000 Arrow Mouse™ and OEM OM20U2 Orbital Mouse® products.
Specifications
Industrial USB Keypad Specification
Industrial Miniature USB Keypad Features| MECHANICAL SPECIFICATION | |||
| KP4000 Dimensions | Width: 1.83" (46.48mm) | Height: 1.93" (49.02mm) | Below Panel: 0.43" (10.92mm) |
| Key Travel | 0.08" (2mm) | Key Cap Size | Width: 0.44" (11.18mm) | Height: 0.51" (12.95mm) |
| Keys | 4 silicone Rubber Keys with carbon pill | Actuation Force: 100g +/- 20G |
| MTBF | Greater than 100,000 hours (Hard gold plating) |
| Life Expectancy | 5VDC @ 50mA is 10,000,000+ activations | |
| SynProof™ Coated Elastomer is 10,000,000 + cycles | Paryelene Coated Elastomer is 10,000,000 + cycles (Option) | |
| Shock | Peak Value | 30-50g | Peak Duration | 11ms | Waveform | Half-Sine |
| Vibration | Frequency / Displacement |
5-25 Hz / 0.1" | 25-55 Hz / 0.03" |
| ENVIRONMENTAL SPECIFICATION | |||||||||||||
| Operating Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Storage Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Relative Humidity | 100% (properly installed) | ||||||||||||
| Sealing Rating | NEMA 4 (IP66) Watertight (properly installed) | ||||||||||||
| Elastomer Coating | SynProof™ Coating | Paryelene Coating | |||||||||||
| PCB Coating | Conformal Coating | ||||||||||||
| CONFORMANCE / CERTIFICATION / COMPLIANCE | |||||||||||||
| U.S.A Standards | U.S. FCC 47 CFR 15 Class A & B | RF Emissions Compliant 8Kv (Contact), 15Kv (Air) | |||||||||||
| MIL-STD-461F | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| MIL-STD-810G | Protection against humidity, fungus, and salt spray Conformance | ||||||||||||
| MIL-STD-910D | Protection against shock Conformance | ||||||||||||
| MIL-STD-671-1 | Protection against vibration Conformance | ||||||||||||
| MIL-STD-1427G | Human Factors Conformance | ||||||||||||
| MIL-I-45208 | Quality System Conformance | ||||||||||||
| IPC-A-610 | Acceptability of Electronics Assemblies Certification | ||||||||||||
| European Standards | "CE" Compliant | ||||||||||||
| Restriction of Hazardous Substance (RoHS) Directive Complaint | |||||||||||||
| Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant | |||||||||||||
| International Standards | IEC 61000-4-2 and EN61000-4-2 | ESD 8Kv contact and 15Kv air Conformance | |||||||||||
| IEC 61000-4-3 and EN61000-4-3 | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| IEC 61000-6-3 and EN61000-6-3 | Electromagnetic Compatibility Conformance | ||||||||||||
| IEC 60601-1 and EN60601-1 | Medical Device Design and Manufacture Conformance | ||||||||||||
| IEC 62353 and BS EN62353 | Medical Device Recurrent Testing Conformance | ||||||||||||
| subject to manufacturing options applied | |||||||||||||
Pricing
OEM Industrial USB Keypad Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial USB Keypad Pricing

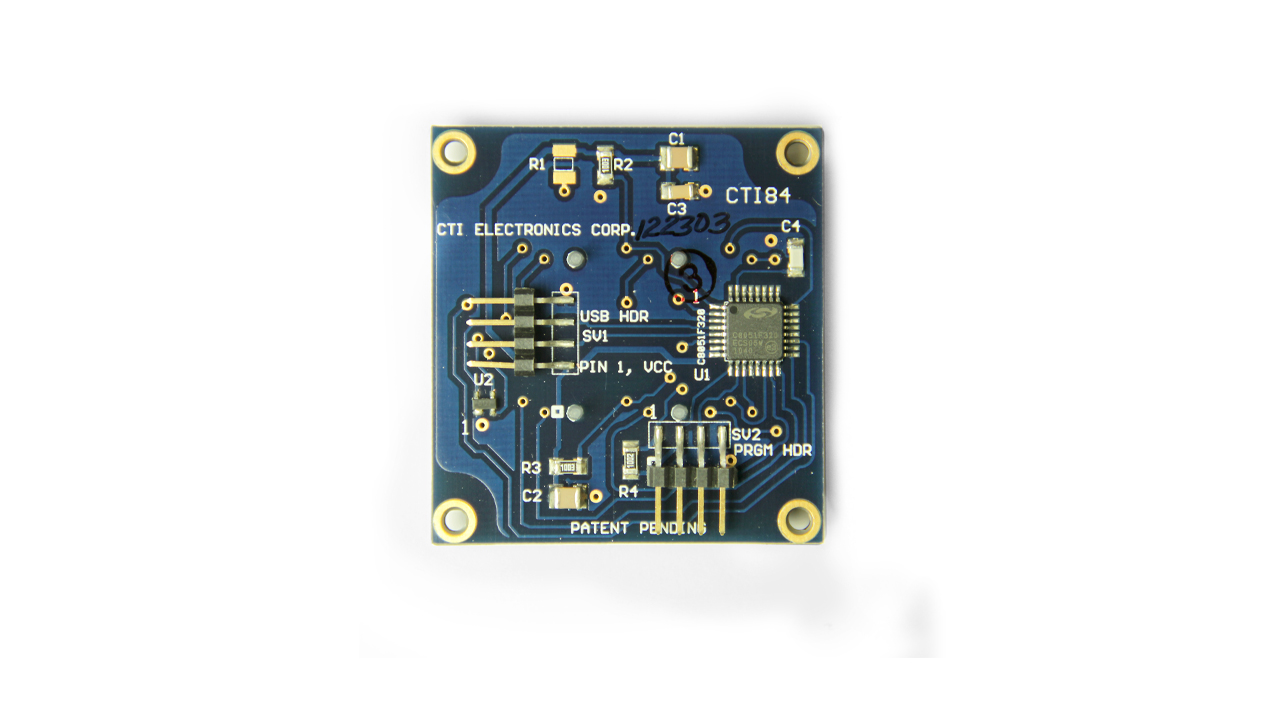

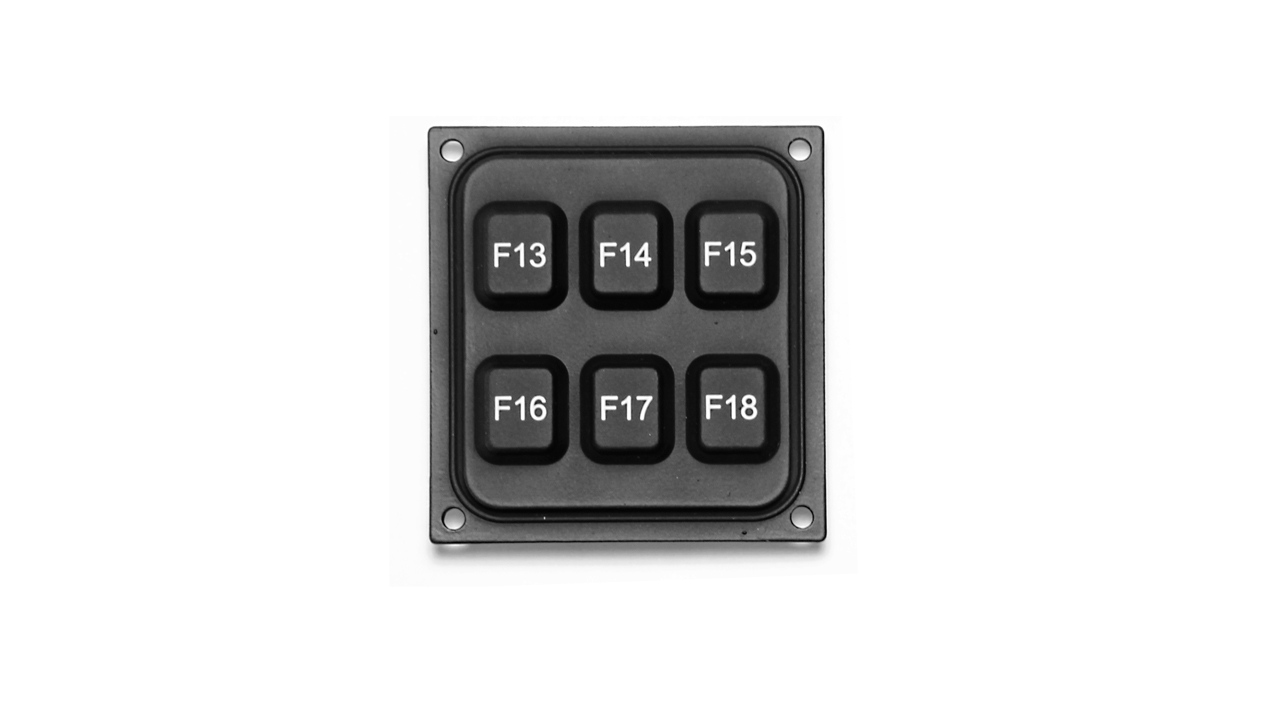

KP6000 Series 6-Button OEM Industrial USB Keypad (F13 - F18)
NEMA 4 (IP66) OEM Six-Button Miniature Keypad
Product Information
This six button OEM USB keypad offers design engineers a convenient user interface for implementing new software application features. A Software Application Developer can utilize the pre-defined codes outlined in the USB Specification Standard that are available through API libraries of the USB HID Compliant Keyboard Device Driver on a Windows OS® platform. Most keyboards manufactured today only offer the Function 1 (F1) through Function 12 (F12) keys, thus some operation systems (i.e. Windows OS®) and software applications do not take advantage of the Function 13 (F13) through Function 18 (F18) keys. The F13 through F18 keys have pre-defined, unique, codes available via the USB HID Compliant Keyboard Device Driver (USB HID Usage ID HEX Codes 68, 69, 6A, 6B, 6C, 6D) that can be implemented to provided additional functions for a software application.
CTI's miniature USB keypads when installed provide a NEMA 4 (IP66) watertight sealing protection. CTI's specially formulated SYN-Proof™ coating provides the silicone rubber keypad with additional protection against harsh oils and solvents. The design of these miniature USB keypads ensures years of reliable service and durability through the use of hard carbon pill contacts molded into the silicone rubber elastomer with a thick layer of hard gold plated onto the printed circuit board. With an operating temperature range of -40°C to +80°C (-40°F to +176°F) these miniature USB keypads have been ruggedized to meet aerospace, marine, medical, and military standards. When properly installed these USB keypads can meet MIL-STD-167-1 (protection against vibration), MIL-STD-901D (protection against shock), MIL-STD-461F (high EMI/RFI levels), MIL-STD-810G (protection against humidity, fungus, and salt spray), and MIL-HDBK-217F (MTBF is greater than 100,000 hours) as well as other international standards.
These miniature USB Keypads are implemented with CTIs modular design methodology thus allowing designers to take advantage of the same mounting hole patterns previously created by the use of CTIs OEM AP2000 Arrow Mouse™ and OEM OM20U2 Orbital Mouse® products.
Specifications
Industrial USB Keypad Specification
Industrial Miniature USB Keypad Features| MECHANICAL SPECIFICATION | |||
| KP6000 Dimensions | Width: 1.83" (46.48mm) | Height: 1.93" (49.02mm) | Below Panel: 0.30" (7.62mm) |
| Key Travel | 0.08" (2mm) | Key Cap Size | Width: 0.33" (8.38mm) | Height: 0.41" (10.41mm) |
| Keys | 6 silicone Rubber Keys with carbon pill | Actuation Force: 100g +/- 20G |
| MTBF | Greater than 100,000 hours (Hard gold plating) |
| Life Expectancy | 5VDC @ 50mA is 10,000,000+ activations | |
| SynProof™ Coated Elastomer is 10,000,000 + cycles | Paryelene Coated Elastomer is 10,000,000 + cycles (Option) | |
| Shock | Peak Value | 30-50g | Peak Duration | 11ms | Waveform | Half-Sine |
| Vibration | Frequency / Displacement |
5-25 Hz / 0.1" | 25-55 Hz / 0.03" |
| ENVIRONMENTAL SPECIFICATION | |||||||||||||
| Operating Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Storage Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Relative Humidity | 100% (properly installed) | ||||||||||||
| Sealing Rating | NEMA 4 (IP66) Watertight (properly installed) | ||||||||||||
| Elastomer Coating | SynProof™ Coating | Paryelene Coating | |||||||||||
| PCB Coating | Conformal Coating | ||||||||||||
| CONFORMANCE / CERTIFICATION / COMPLIANCE | |||||||||||||
| U.S.A Standards | U.S. FCC 47 CFR 15 Class A & B | RF Emissions Compliant 8Kv (Contact), 15Kv (Air) | |||||||||||
| MIL-STD-461F | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| MIL-STD-810G | Protection against humidity, fungus, and salt spray Conformance | ||||||||||||
| MIL-STD-910D | Protection against shock Conformance | ||||||||||||
| MIL-STD-671-1 | Protection against vibration Conformance | ||||||||||||
| MIL-STD-1427G | Human Factors Conformance | ||||||||||||
| MIL-I-45208 | Quality System Conformance | ||||||||||||
| IPC-A-610 | Acceptability of Electronics Assemblies Certification | ||||||||||||
| European Standards | "CE" Compliant | ||||||||||||
| Restriction of Hazardous Substance (RoHS) Directive Complaint | |||||||||||||
| Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant | |||||||||||||
| International Standards | IEC 61000-4-2 and EN61000-4-2 | ESD 8Kv contact and 15Kv air Conformance | |||||||||||
| IEC 61000-4-3 and EN61000-4-3 | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| IEC 61000-6-3 and EN61000-6-3 | Electromagnetic Compatibility Conformance | ||||||||||||
| IEC 60601-1 and EN60601-1 | Medical Device Design and Manufacture Conformance | ||||||||||||
| IEC 62353 and BS EN62353 | Medical Device Recurrent Testing Conformance | ||||||||||||
| subject to manufacturing options applied | |||||||||||||
Pricing
OEM Industrial USB Keypad Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial USB Keypad Pricing
KP6000 Series 6-Button OEM Industrial USB Keypad (F19 - F24)
NEMA 4 (IP66) OEM Six-Button Miniature Keypad
Product Information
This six button OEM USB keypad offers design engineers a convenient user interface for implementing new software application features. A Software Application Developer can utilize the pre-defined codes outlined in the USB Specification Standard that are available through API libraries of the USB HID Compliant Keyboard Device Driver on a Windows OS® platform. Most keyboards manufactured today only offer the Function 1 (F1) through Function 12 (F12) keys, thus some operation systems (i.e. Windows OS®) and software applications do not take advantage of the Function 19 (F19) through Function 24 (F24) keys. The F13 through F18 keys have pre-defined, unique, codes available via the USB HID Compliant Keyboard Device Driver (USB HID Usage ID HEX Codes 6E, 6F, 70, 71, 72, 73) that can be implemented to provided additional functions for a software application.
CTI's miniature USB keypads when installed provide a NEMA 4 (IP66) watertight sealing protection. CTI's specially formulated SYN-Proof™ coating provides the silicone rubber keypad with additional protection against harsh oils and solvents. The design of these miniature USB keypads ensures years of reliable service and durability through the use of hard carbon pill contacts molded into the silicone rubber elastomer with a thick layer of hard gold plated onto the printed circuit board. With an operating temperature range of -40°C to +80°C (-40°F to +176°F) these miniature USB keypads have been ruggedized to meet aerospace, marine, medical, and military standards. When properly installed these USB keypads can meet MIL-STD-167-1 (protection against vibration), MIL-STD-901D (protection against shock), MIL-STD-461F (high EMI/RFI levels), MIL-STD-810G (protection against humidity, fungus, and salt spray), and MIL-HDBK-217F (MTBF is greater than 100,000 hours) as well as other international standards.
These miniature USB Keypads are implemented with CTIs modular design methodology thus allowing designers to take advantage of the same mounting hole patterns previously created by the use of CTIs OEM AP2000 Arrow Mouse™ and OEM OM20U2 Orbital Mouse® products.
Specifications
Industrial USB Keypad Specification
Industrial Miniature USB Keypad Features| MECHANICAL SPECIFICATION | |||
| KP6000 Dimensions | Width: 1.83" (46.48mm) | Height: 1.93" (49.02mm) | Below Panel: 0.30" (7.62mm) |
| Key Travel | 0.08" (2mm) | Key Cap Size | Width: 0.33" (8.38mm) | Height: 0.41" (10.41mm) |
| Keys | 6 silicone Rubber Keys with carbon pill | Actuation Force: 100g +/- 20G |
| MTBF | Greater than 100,000 hours (Hard gold plating) |
| Life Expectancy | 5VDC @ 50mA is 10,000,000+ activations | |
| SynProof™ Coated Elastomer is 10,000,000 + cycles | Paryelene Coated Elastomer is 10,000,000 + cycles (Option) | |
| Shock | Peak Value | 30-50g | Peak Duration | 11ms | Waveform | Half-Sine |
| Vibration | Frequency / Displacement |
5-25 Hz / 0.1" | 25-55 Hz / 0.03" |
| ENVIRONMENTAL SPECIFICATION | |||||||||||||
| Operating Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Storage Temperature | -40º to 80º C / -40º to 176º F | ||||||||||||
| Relative Humidity | 100% (properly installed) | ||||||||||||
| Sealing Rating | NEMA 4 (IP66) Watertight (properly installed) | ||||||||||||
| Elastomer Coating | SynProof™ Coating | Paryelene Coating | |||||||||||
| PCB Coating | Conformal Coating | ||||||||||||
| CONFORMANCE / CERTIFICATION / COMPLIANCE | |||||||||||||
| U.S.A Standards | U.S. FCC 47 CFR 15 Class A & B | RF Emissions Compliant 8Kv (Contact), 15Kv (Air) | |||||||||||
| MIL-STD-461F | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| MIL-STD-810G | Protection against humidity, fungus, and salt spray Conformance | ||||||||||||
| MIL-STD-910D | Protection against shock Conformance | ||||||||||||
| MIL-STD-671-1 | Protection against vibration Conformance | ||||||||||||
| MIL-STD-1427G | Human Factors Conformance | ||||||||||||
| MIL-I-45208 | Quality System Conformance | ||||||||||||
| IPC-A-610 | Acceptability of Electronics Assemblies Certification | ||||||||||||
| European Standards | "CE" Compliant | ||||||||||||
| Restriction of Hazardous Substance (RoHS) Directive Complaint | |||||||||||||
| Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant | |||||||||||||
| International Standards | IEC 61000-4-2 and EN61000-4-2 | ESD 8Kv contact and 15Kv air Conformance | |||||||||||
| IEC 61000-4-3 and EN61000-4-3 | Radiated Emissions and Susceptibility Conformance | ||||||||||||
| IEC 61000-6-3 and EN61000-6-3 | Electromagnetic Compatibility Conformance | ||||||||||||
| IEC 60601-1 and EN60601-1 | Medical Device Design and Manufacture Conformance | ||||||||||||
| IEC 62353 and BS EN62353 | Medical Device Recurrent Testing Conformance | ||||||||||||
| subject to manufacturing options applied | |||||||||||||
Pricing
OEM Industrial USB Keypad Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
OEM Industrial USB Keypad Pricing
Manufactured in U.S.A.
Copyright © 2001-2024 | CTI Electronics an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
| Follow @ctielectronics |
|---|
