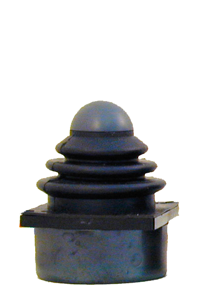

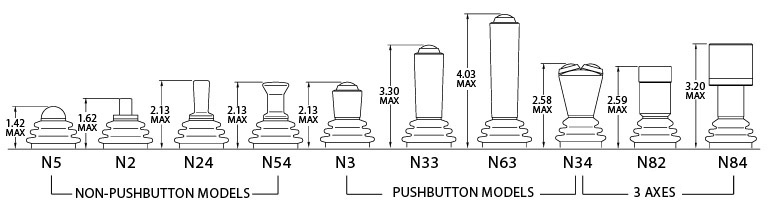

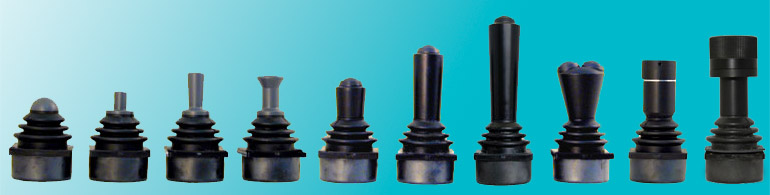

F1000 Series OEM Precision Control Industrial Joysticks (Analog Joysticks)
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Thumb operated
- Spring return to center
- Neoprene or conductive
silicone boot
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N5 Video Demonstration(VIDEO)
F1000-N5 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

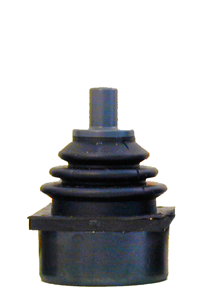

F1000-N2 Series - NEMA 4 (IP66) Miniature Industrial Joysticks:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot - Fingertip operation
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N2 Video Demonstration(VIDEO)
F1000-N2 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

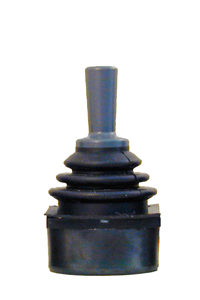

F1000-N24 Series - NEMA 4 (IP66) Industrial Joysticks:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N24 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

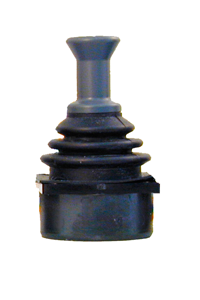

F1000-N54 Series - NEMA 4 (IP66) Industrial Joysticks:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Friction held single Axis
- Neoprene or conductive
silicone boot
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N54 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

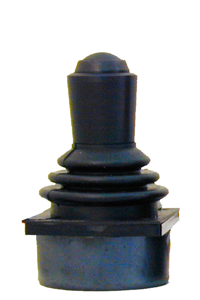

F1000-N3 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot - PB switch is fully sealed
& rated w/ 1m actuations - PB switch has gold contacts
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N3 Video Demonstration(VIDEO)
F1000-N3 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

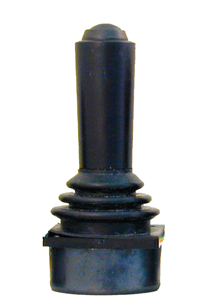

F1000-N33 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot - PB switch is fully sealed
& rated w/ 1m actuations - PB switch has gold contacts
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N33 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

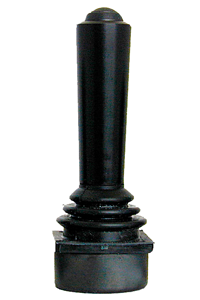

F1000-N63 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot - PB switch is fully sealed
& rated w/ 1m actuations - PB switch has gold contacts
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N63 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

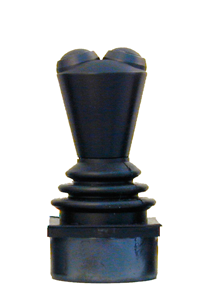

F1000-N34 Series— NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Dual Pushbuttons:
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Neoprene or conductive
silicone boot - Two momentary
pushbuttons on top - PB switch is fully sealed
& rated w/ 1m actuations - PB switch has gold contacts
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1000-N34 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

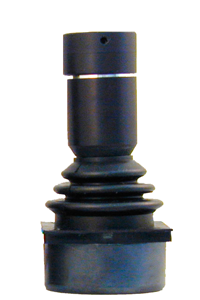

F1800-N82 Series - NEMA 12 (IP54) Three Axes Industrial Joysticks:
Mechanical Options
- 3 Axes with 5k
potentiometer - Spring return to center
- Neoprene or conductive
silicone boot - Rotational life for 5k
potentiometer is 20m
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 2 | +/-5 | -5 | 0 | 5 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1800-N82 Series - Three Axes NEMA 12 (IP54) Specifications (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1800-N82 Video Demonstration(VIDEO)
F1800-N82 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing

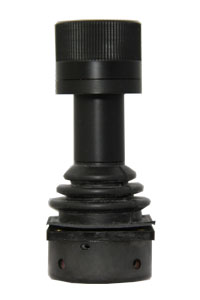

F1800-N84 Series - NEMA 4 (IP66) Three Axes Industrial Joysticks:
Mechanical Options
- 3 Axes with 5k potentiometer
- Spring return to center
- Neoprene or conductive
silicone boot - Rotational life for 5k
potentiometer is 20m
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable - Optical Neutral Safety Switch
Voltage Options
Analog Industrial Joystick Voltage Options |
||||
|---|---|---|---|---|
| Option | Regulated Input Voltage (DC) |
Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 2 | +/-5 | -5 | 0 | 5 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1800-N84 Series - Three Axes NEMA 4 (IP66) Specifications (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to select an Industrial Joystick (PDF)
Joystick Knob Options (PDF)
F1800-N84 Industrial Joystick CAD Drawing (CAD DWG)
Industrial Analog Joystick Pricing
H-Series Joysticks
H0000 Series OEM Heavy Duty Industrial Joysticks: CTI's heavy duty, full size industrial joysticks (H Series heavy duty joysticks), predecessor to the F Series, offer the same non-contacting design in a larger size model. The H0000 Series industrial
joysticks are legacy products and are not recommended for new projects. These analog industrial joysticks are also extremely precise, highly reliable, rugged, and drift-free. These OEM industrial joysticks are supplied complete with interface electronics and NEMA 4 (IP66) (single or dual axis models) or NEMA 12 (IP54) (3 axes model) sealing. These heavy duty industrial joysticks are ideally suited for harsh environments, heavy equipment machinery, and manufacturing/processing facilities. Without compromise, both the F1000 Series and H0000 Series industrial joysticks are simply the most durable and reliable joysticks available on the market today.
hide
Copyright © 2001-2012 by CTI Electronics Corporation. All Rights Reserved - sitemap
CTI Electronics Corporation | 110 Old South Avenue, Stratford, CT 06615 | Tel: | Fax: (203)378-4986
|
