Illuminated (Backlit) Industrial Pointing Devices

illuminated, backlit, sealed, Industrial Mouse™, mouse pointer

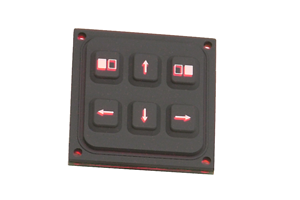

AP2000-BX Series
AP2000-BX Series - NEMA 4 (IP66) Sealing Illuminated ArrowMouse™:
The AP2000-BX Series has all the features of the CTI ARROWMOUSE; high reliability, NEMA 4 (IP66) sealing, low profile and small footprint and adds illumination. These sealed Industrial Mouse™ pointers allow vertical and horizontal movement of the mouse cursors and both the left and right mouse cursors functionality.
Additionally, these industrial computer mouse pointers provide red or green LED backlighting with all power drawn only from the computer mouse port. There are ten (10) levels of backlighting intensity; changeable by the user directly from the ArrowMouse™ keys and completely independent of the computer operating system.
Gold plated contacts ensure a very long life with over 10M activations. These sealed industrial computer mouse pointers are the most cost effective, drift free, back-lit cursor controllers available.
Rated NEMA 4 (IP66), FCC class A, CE marked (patents pending).
AP2000-BX Computer Mouse Pointers Series Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operation (PDF)
AP2000 Series Non-Backlit Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF)
How to select an Industrial Pointing Device
AP2000-BX BacklitMouse Pointer CAD Drawing (CAD DWG)
OEM Industrial Backlit Arrow Mouse Pricing
hide

illuminated, NEMA 4 (IP66), button style mouse, waterproof, rugged

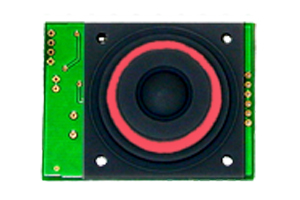

OM2000-BX Series
OM2000-BX Series – NEMA 4 (IP66) Sealing Illuminated OrbitalMouse®:
CTI's OrbitalMouse®, sealed mouse pointers, are high reliability industrial computer mouse pointers with a low-profile button style pointer. This series is designed for OEM applications where the mouse buttons are provided by the OEM. It has various options such as backlighting in red or green, a non-backlit model (OM2000), as well as
cable styles and lengths. The dimensions are 1.65 by 2.15 inches and require less than .50 inches behind the panel; the perfect alternative to touchpads. For applications requiring less panel depth, right angle headers can be supplied. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.
OM2000-BX Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM2000 Series Non-Backlit Computer Mouse Pointers
How to select an Industrial Pointing Device
OM2000 Series Backlit OEM Orbital Mouse Pointer CAD Drawing (CAD DWG)
OEM Industrial Illuminated Orbital Mouse ™ Pricing
hide

illuminated, NEMA 4 (IP66), button style mouse, waterproof, rugged

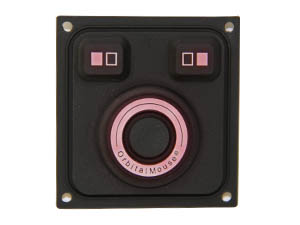

OM20U2-BX Model
OM20U2-Bx Model – NEMA 4 (IP66) Backlit Orbital Mouse® w/ Integrated Buttons:
The OM20U2-Bx industrial button style mouse pointer integrates two buttons with an elastomer that provides a NEMA 4 (IP66) sealing. These two buttons act as the normal left and right mouse button functionality which are integrated into the compact PCB. This backlit version of the Orbital Mouse® is available with red or green backlighting.

 The dimensions are 1.93 by 1.83 inches and require less than 0.3 inches below panel and 0.2 inches above panel; the perfect alternative to a touchpad. Options include backlighting in red or green, a non-backlit model (OM20U2), as well as cable lengths. Available interface is USB and does not require any special drivers or calibration.

OM20U2-Bx Industrial Orbital Mouse Pointer Technical Drawing (PDF)
OrbitalMouse® Industrial Mouse Pointers Specifications (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM20U2 Series Non-Backlit Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF)
 How to select an Industrial Pointing Device
OM20U2-Bx Series Backlit Orbital Mouse Pointer CAD Drawing (CAD DWG)
OEM Industrial Illuminated Orbital Mouse ™ Pricing
hide


rugged, touchpad, Industrial Mouse™, illuminated, oem

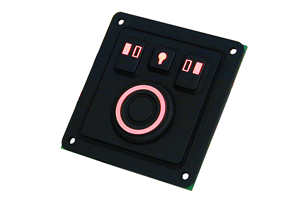

OM2200-BX Series
OM2200-BX Series – NEMA 4 (IP66) Backlit OrbitalMouse® w/ Integrated Switches:
This version of the industrial button style mouse pointer integrates the OM2000 with industrial rubber switches. This backlit version of the OrbitalMouse® provides NEMA 4 (IP66) sealing, and is available with red or green backlighting. These switches have an LED for the drag function indicator option. The switches are integrated into a
PCB offering a compact size. The dimensions are 2.56 by 2.68 inches and require less than .40 inches behind the panel; the perfect alternative to a touchpad. Options include backlighting in red or green, a non-backlit model (OM2200), as well as cable styles and lengths. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.
OM2200-BX Computer Mouse Pointers Technical Drawing(PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM2200 Series Non-Backlit Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF)
How to select an Industrial Pointing Device
OM2200-BX Series Backlit Orbital Mouse Pointer CAD Drawing (CAD DWG)
OEM Industrial Backlit Orbital Mouse ™ Pricing
hide

rugged, touchpad, Industrial Mouse™, illuminated, oem

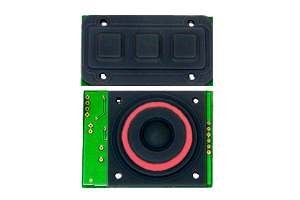

OM2300-BX Series
OM2300-BX Series – NEMA 4 (IP66) Backlit OrbitalMouse® w/ Integrated Switches:
This version of the industrial button style mouse pointer combines the OM2000 with a separate industrial rubber switch pad; both provide NEMA 4 (IP66) sealing. This switch pad has an LED for the drag function indicator option. The switch pad is attached to the OM2000 PCB with a 4.5 inch ribbon cable, allowing for flexibility in positioning the switches
near the button. The dimensions of the OM2000 are 1.65 by 2.15 inches and require less than .50 inches behind the panel. The dimensions of the sealed switch pad are 2.26 inches by 1.33 inches and require less than .09 inches behind the panel. Available interface is PS/2 or USB and does not require any special drivers or calibration.
OM2300-BX Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM2300-BX Series Non-Backlit Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF)
How to select an Industrial Pointing Device
OM2300-BX Series OEM Orbital Mouse Pointer CAD Drawing (CAD DWG)
OEM Industrial Backlit Orbital Mouse ™ Pricing
