Handheld (Analog) Industrial Motion Control Device NEMA 4X (IP66) Rated

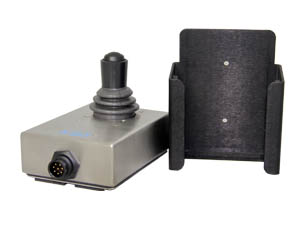

M2000-Nx Series - NEMA 4X (IP66) Analog Industrial Motion Controller:
These rugged NEMA 4X (IP66) sealed analog controllers are designed for use as an operator interface in industrial environments for precision motion control of numerous analog devices including DC motor control, Stepper Motors, Programmable Logic Controllers (PLC's), etc. The M2000-Nx Series is a Commercial-Off-The-Shelf (COTS) product which is readily manufactured based upon a customer's individual specifications.
The NEMA 4X (IP66) stainless steel enclosure is designed for limited-space applications; it features a gasket sealed bottom plate with rubber feet to prevent movement or slippage on dirty, wet, surfaces. With an 8 pin NEMA 4 (IP66) connection (Shell and Plug) it provides X and Y axis voltage outputs, center voltage reference, and optional one or two pushbutton voltage outputs. A variety of Input/Output Voltage selections (+5V, +10V, +12V, +24V, ±5V, ±10V, ±12V Inputs) are provided to encompass a broad range of applications spanning Industrial, Medical, and Military markets. Its design is the perfect solution where washing off of debris, harsh oils and/or abrasive chemicals is required.
The M2000-Nx Series has all the features of the Industrial Mouse™ family, and with optional one or two pushbuttons on the joystick it allows the operator to conveniently perform controlled functions; while wearing heavy duty gloves. A selection of eight different joystick knobs allows for unlimited possibilities to suit your applications' unique needs. (Joystick options include conformal coating of PCB to protect against rapid changes in temperature or high humidity environments. Low Temperature Components to survive and operate in -40°C to +80°C temperature range. Also, these joysticks can be manufactured with an electrical "Safety" indicator known as the Optical Neutral Switch which is activated upon spring return to center.)
In addition, CTI Electronics Corporation also offers an anodized aluminum M2000 holder for convenient placement and storage of the M2000-Nx series Motion Controller. The aluminum holder has pre-drilled holes for simple screw mounting alongside any machine or cabinet. CTI also offers a full one (1) year warranty protection on the M2000-Nx series.
M2000-Nx Handheld Industrial Motion Controller Technical Drawing (PDF)
M2000-Nx Series Motion Controller Installation Sheet
M2000 Holder (PDF)
Joystick Knob Options
hide
Compumotor Industrial Motion Control Device

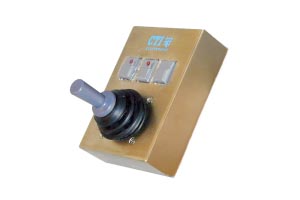

M2003-N24
M2003-N24-P0283 and M2003-N24-P0284 Models
CTI offers form, fit and function analog joystick controllers to be used with the Compumotor 6000 Series programmable motion controllers.
M2003-N24 Analog Joysticks Technical Drawing (PDF)
Motion-Controller-Compumotor-Selection-Guide (PDF)
Motion-Controller-Compumotor-Voltage-Guide (PDF)
M2000 Holder (PDF)
Joystick Knob Options
hide

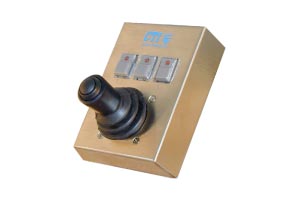

M2003-N3
M2003-N3-P0322 and M2003-N3-P0323 Models
These form, fit and function analog joystick controllers have been designed for use with the Compumotor 6000 Series programmable motion controllers.
These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N3 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.
M2003-N3 Analog Joysticks Technical Drawing (PDF)
Motion-Controller-Compumotor-Selection-Guide (PDF)
Motion-Controller-Compumotor-Voltage-Guide (PDF)
M2000 Holder (PDF)
Joystick Knob Options
hide

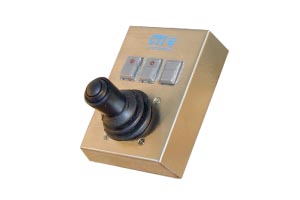

M2003-N3
M2003-N3-P0511 and M2003-N3-P0512 Models
These form, fit and function analog joystick controllers have been designed for use with the Compumotor 6000 Series programmable motion controllers.
M2003-N3 Analog Joysticks Technical Drawing (PDF)
Motion-Controller-Compumotor-Selection-Guide (PDF)
Motion-Controller-Compumotor-Voltage-Guide (PDF)
M2000 Holder (PDF)
Joystick Knob Options
hide
Handheld (USB Joystick) Industrial Motion Control Device | NEMA 4 (IP66) Rated
M20U9T-Nx Series - NEMA 4X (IP66) USB Joystick Industrial Motion Controller:
The M20U9T-Nx Series Handheld USB Joysticks are used as motion control devices (USB Joystick a.k.a. sidewinder joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions.
This series features the USB Joystick (FlightStick Technology) in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for handheld or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged industrial motion control devices (a.k.a. sidewinder joystick) and near waterproof sealing. The standard USB Joysticks have all the features of the FlightStick technology family; and when combined with the low profile, N3 joystick knob, it can be held in one hand and easily operated with the other hand. The three sealed switches perform any three designer-defined functions.
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, various application specific options, including an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
The USB FlightStick (flight simulator) industrial motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB Joystick Industrial Motion Controller are aerospace, automotive, medical, homeland security, surveillance, and military.
An anodized aluminum M2000 holder is available for convenient storage of the M20U9T-Nx series Handheld USB Joystick Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.
M20U9T-Nx USB Joystick Motion Controller Technical Drawing (PDF)
USB Joystick (FlightStick) One & Two Axes Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification (PDF)
PS2 Bulkhead Panel Cable (PDF)
USB Bulkhead Panel Cable (PDF)
USB FlightStick Testing Procedure (PDF)
How to select an Industrial Joystick (PDF)
M2000 Holder (PDF)
Joystick Knob Options
hide
M20U1T-Nx Series
CTI's rugged USB Joystick Industrial Motion Controllers are the most reliable, easy-to-use motion control devices available. The M20U1T-Nx Series is designed for handheld or limited space applications, and features a NEMA 4X (IP66) sealed, stainless steel enclosure complete with gasket sealed bottom plate and rubber feet.
The standard Industrial Motion Controllers have all the features of the FlightStick technology family, and when combined with the low-profile N54 joystick knob option, as shown, it can be held in one hand and easily operated with the other hand. The extra large sealed switch offers convenience, allowing the operator to quickly perform a designer-defined function; even while wearing gloves.
A choice from ten different joystick knobs allows for unlimited possibilities to suit your application's unique needs. In addition, an optional bulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum M2000 holder for convenient storage of the M20U1T-Nx series Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.
M20U1T-Nx USB Joystick Motion Controller Technical Drawing (PDF)
USB Joystick (FlightStick) One & Two Axes Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification (PDF)
PS2 Bulkhead Panel Cable (PDF)
USB Bulkhead Panel Cable (PDF)
USB FlightStick Testing Procedure (PDF)
How to select an Industrial Joystick (PDF)
M2000 Holder (PDF)
Joystick Knob Options
hide
M2000 Series
The M2000 series of rugged hand held computer motion control devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting.
This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series of handheld Industrial Mouse™ pointers such as the Industrial Mouse™, OrbitalMouse®, or industrial motion control devices such as the M2000-Nx and M20UxT-Nx Series (USB Joystick).
M2000 Holder (PDF)
hide
Desktop (USB Joystick) Industrial Motion Control Device | NEMA 4 (IP66) Rated

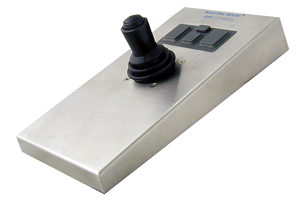

M90U9T-Nx Series - NEMA 4X (IP66) USB Joystick Industrial Motion Controller:
The workstation/desktop version of the Industrial Motion Controller has an ergonomic; stainless steel NEMA 4X (IP66) sealed enclosure. This design is perfect for harsh or wet environments requiring rugged Industrial Motion Control devices (USB FlightStick a.k.a. sidewinder joystick).
The stainless steel enclosure with gasket sealed bottom plate has rubber feet and a sealed stainless steel threaded insert allowing for easy securing to any work surface with just one bolt. Options include industrial joystick knob, various application specific options, including an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
M90U9T-Nx USB Joystick Motion Controller Technical Drawing (PDF)
USB Joystick (FlightStick) One & Two Axes Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification (PDF)
PS2 Bulkhead Panel Cable (PDF)
USB Bulkhead Panel Cable (PDF)
USB FlightStick Testing Procedure (PDF)
How to select an Industrial Joystick (PDF)
M2000 Holder (PDF)
Joystick Knob Options
