OEM Motion Controller Device using a USB Joystick

The F1020-Nx-Pxxxx Model RS-485 Motion Controller Industrial Joysticks are a customized offering for the Original Equipment Manufacturer (OEM) based upon the applications requirements.  These are proprietary designed motion controller devices that can allow up to three axes of control with multiple user-defined button functions using CTI's NEMA 4 (IP66) sealed switch assembly technology.  More complex designs can use multiple industrial joysticks with multiple intelligent switch assemblies.

The F1020-Nx-Pxxxx Model is an industrial motion controller that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial motion controllers are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the RS-485 serial motion controller are aerospace, automotive, medical, homeland security, surveillance, and military.

When mounted to a panel or into an enclosure the RS-485 serial motion controller assembly provides NEMA 4 (IP66) watertight sealing. All joysticks have a small mounting footprint requiring a 1.65 inch square and 7/8 inch depth below panel.  The interface PCB and switch assembly can be located in any position relative to the joystick. These rugged motion control devices can easily be interchanged with one of ten knob options including one, two, or three axes joysticks.  A few of these RS-485 serial industrial joysticks have one or two NEMA 4 (IP66) sealed buttons in the knob for easy switching or selection of control.

Options include joystick knob selection, NEMA 4 (IP66) sealed switches, RS-422 or RS-232 serial interfaces, custom length ribbon cables, or special wiring harnesses as required.

The optional switch assembly is molded silicone with 2mm travel and has gold over nickel contacts for both tactile response and reliability. When mounted to a panel or into an enclosure, the motion control device assembly provides NEMA 4 (IP66) sealing.

CTI's custom oem motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's oem motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These oem motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

F1020 Industrial Joystick with RS-485 Serial Interface Technical Drawing
F1020-N82 Industrial Joystick with RS-485 Serial Interface Technical Drawing

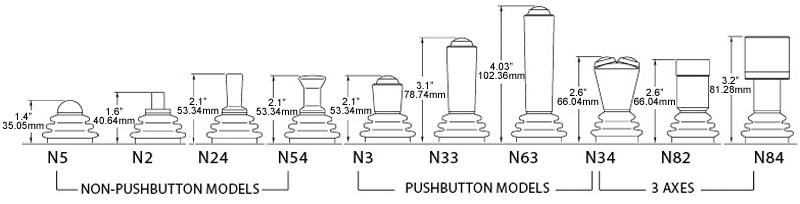

Joystick knob options
