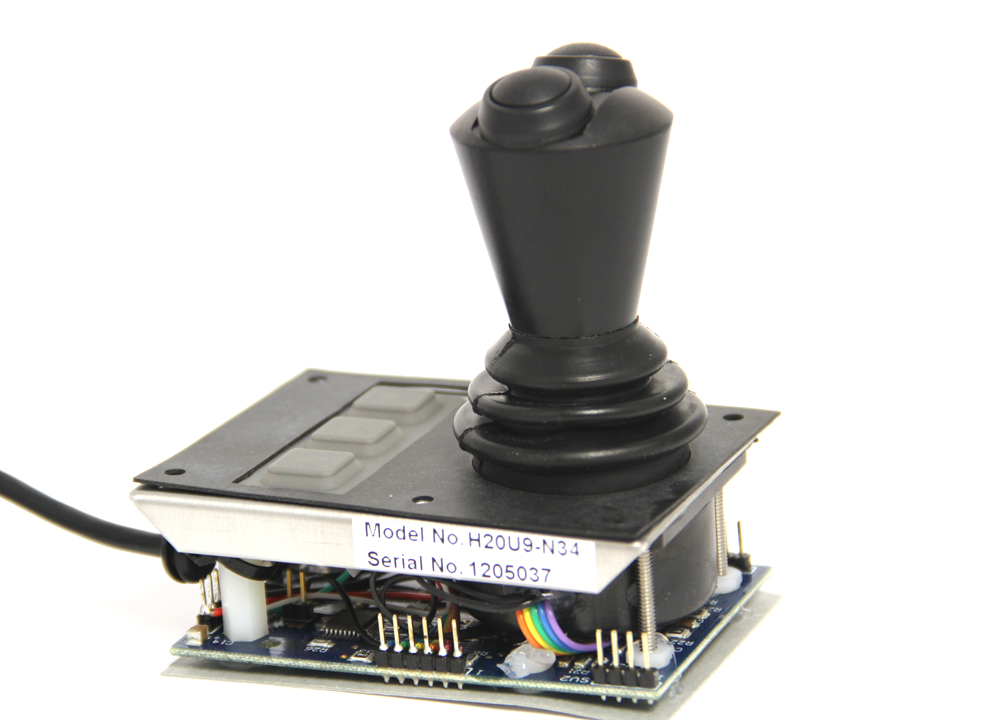

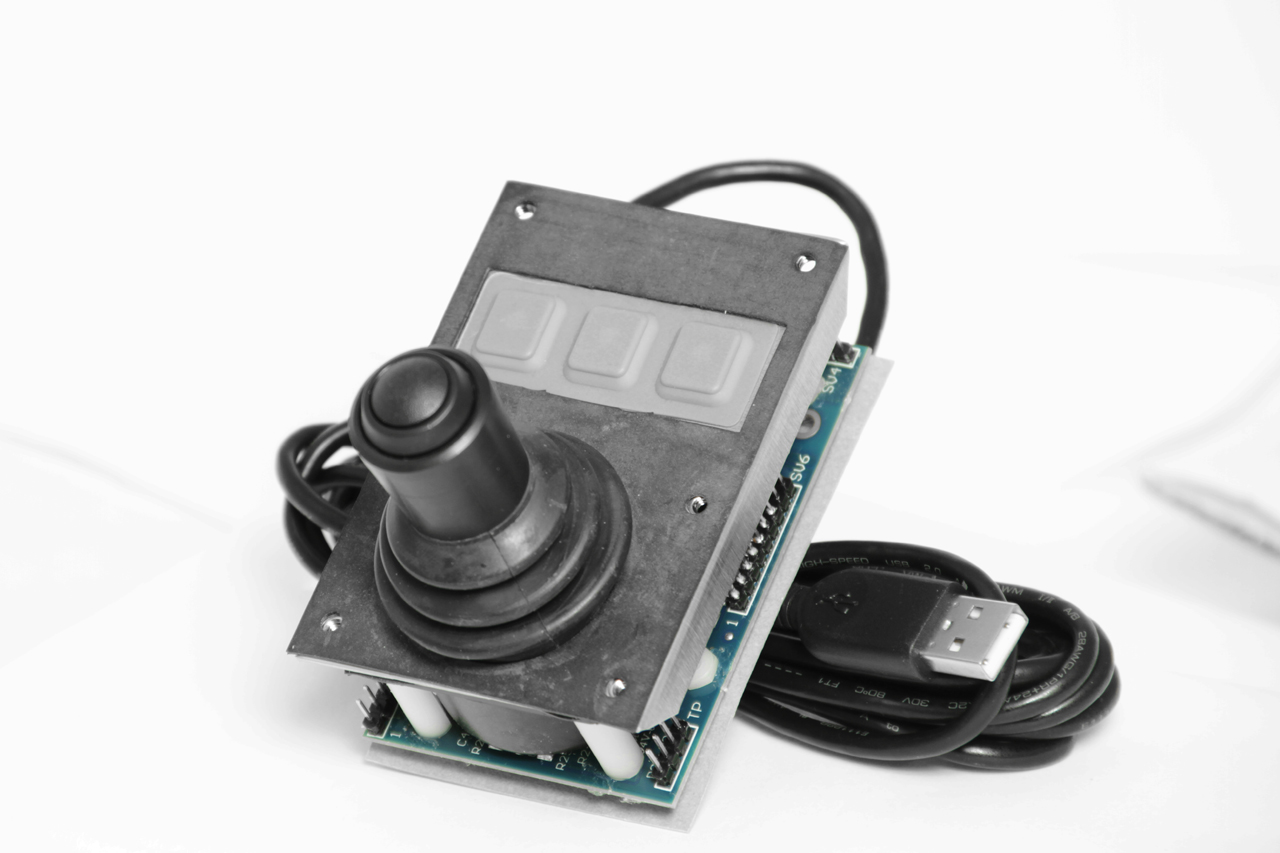

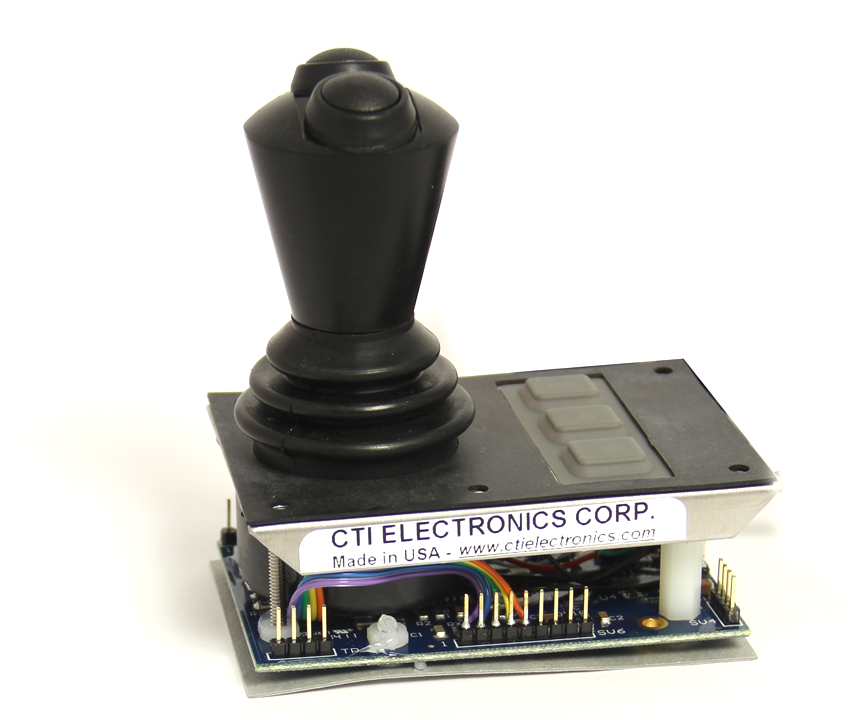

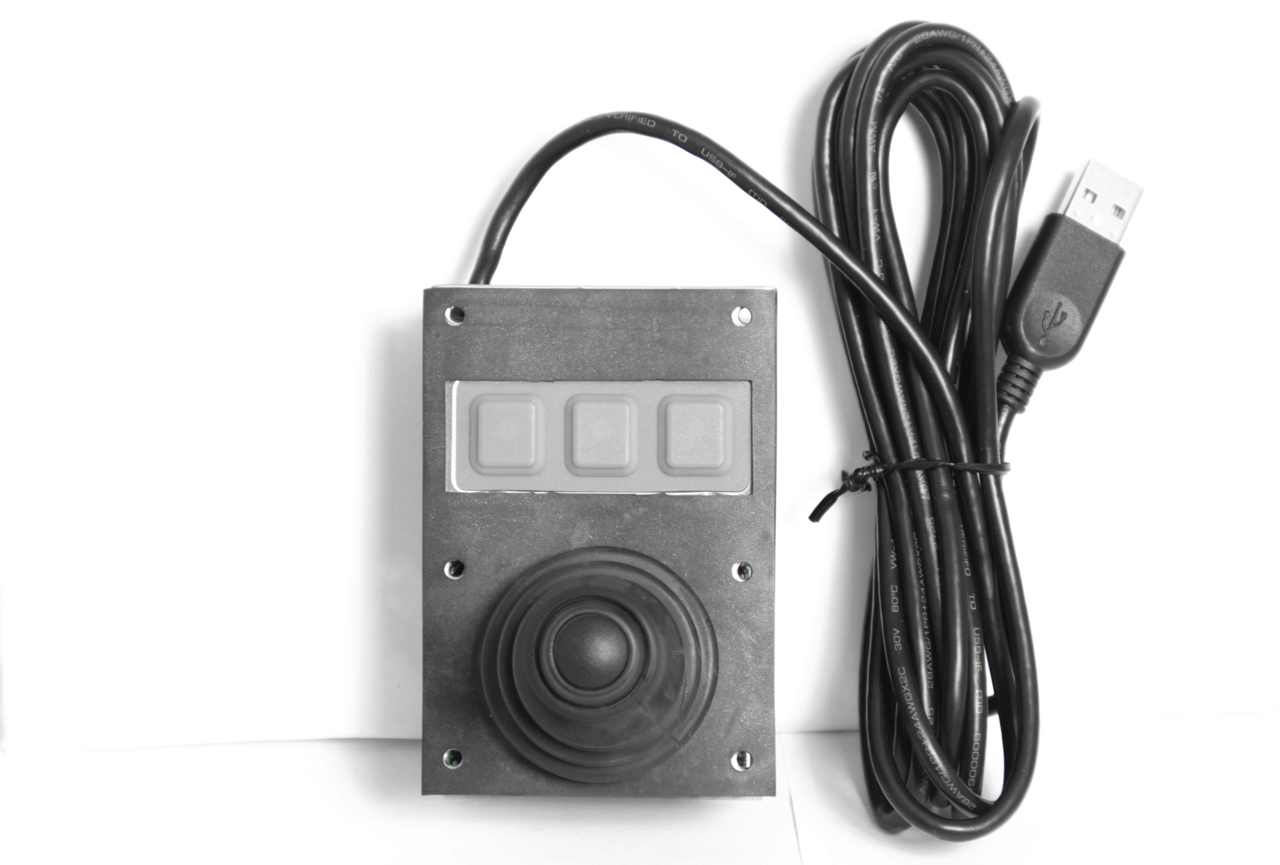

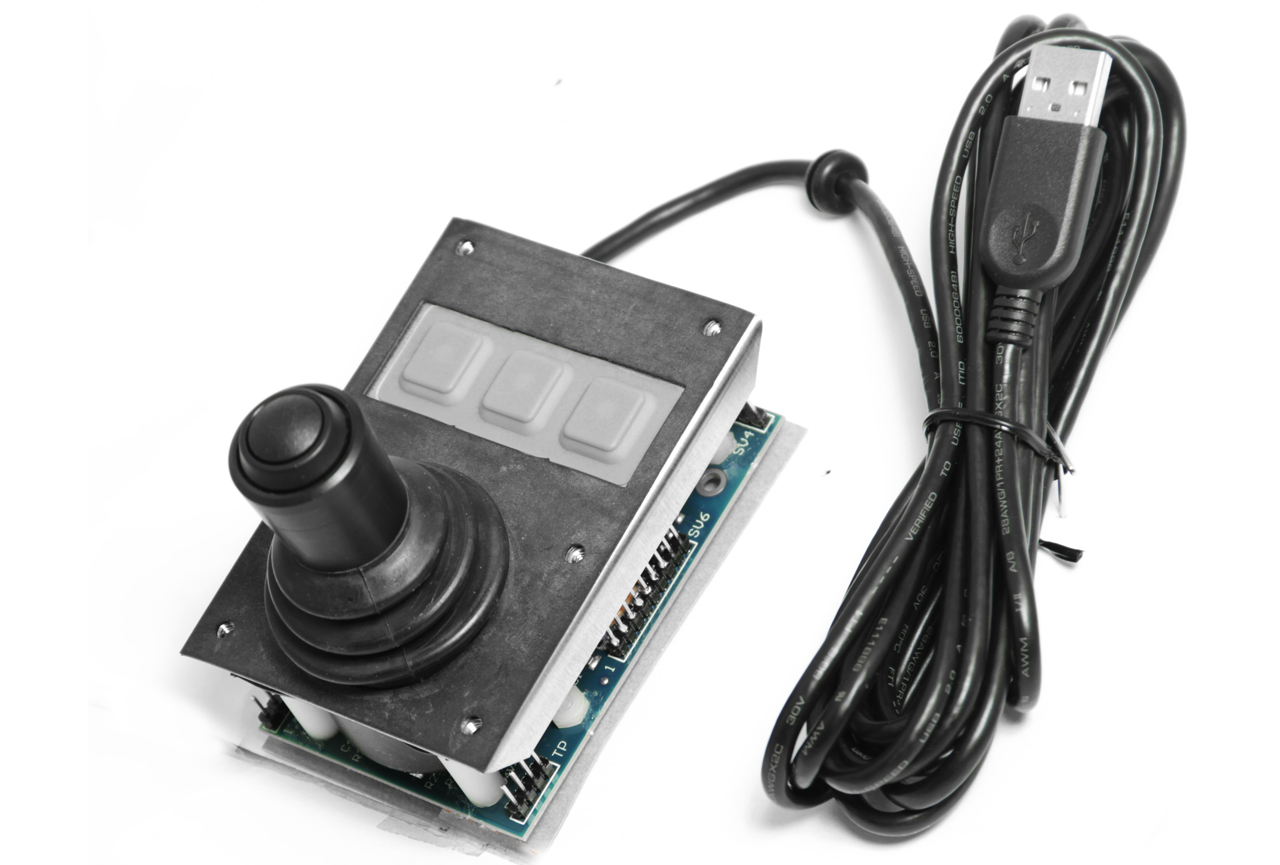

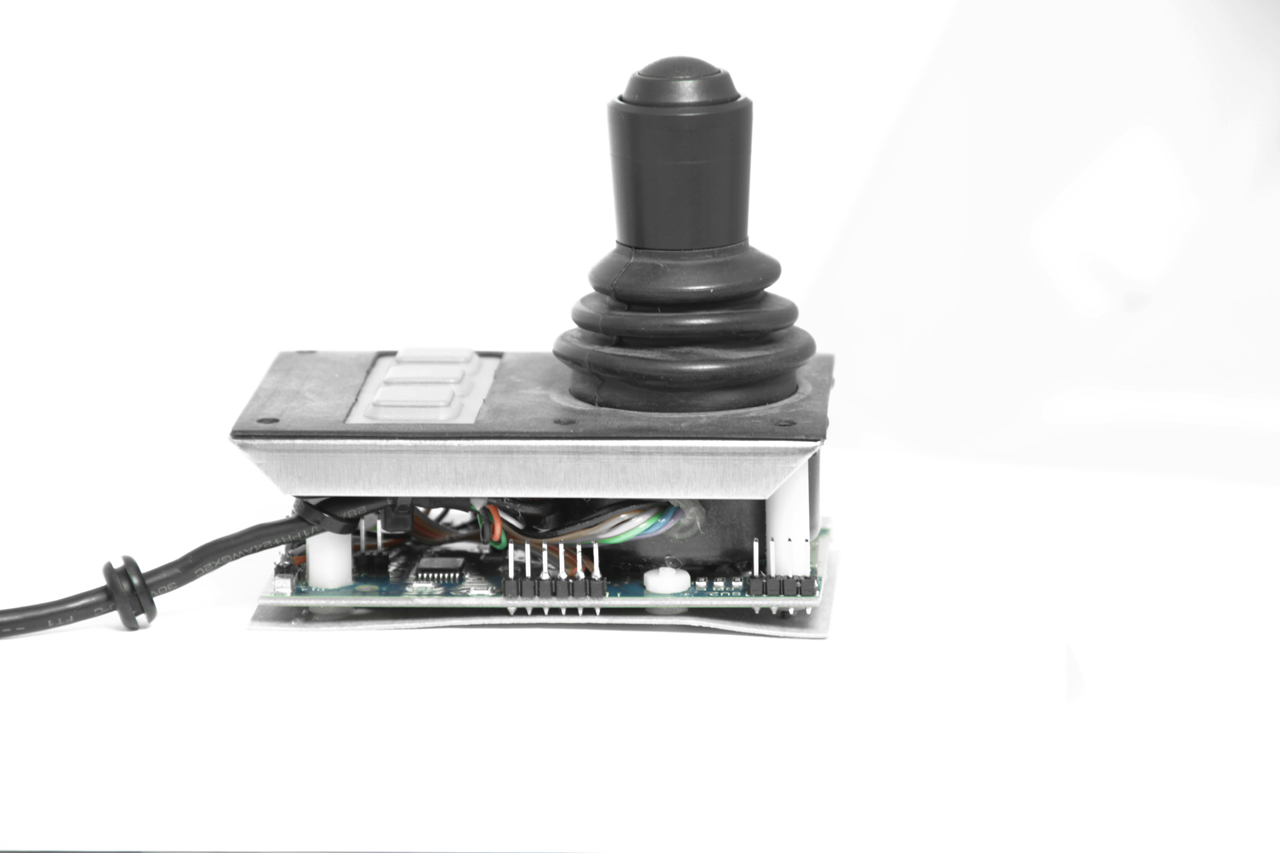

Panel Mount Motion Controller using a USB Joystick

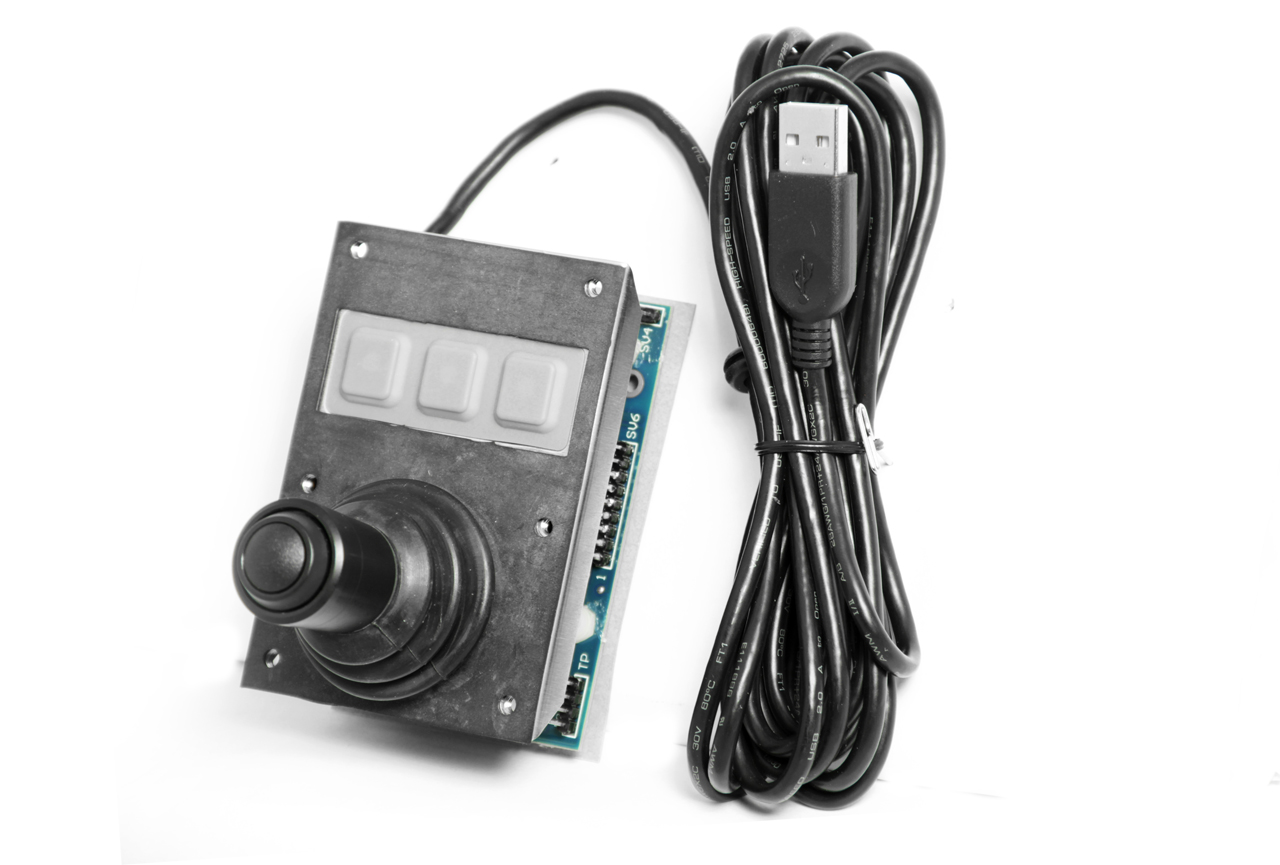

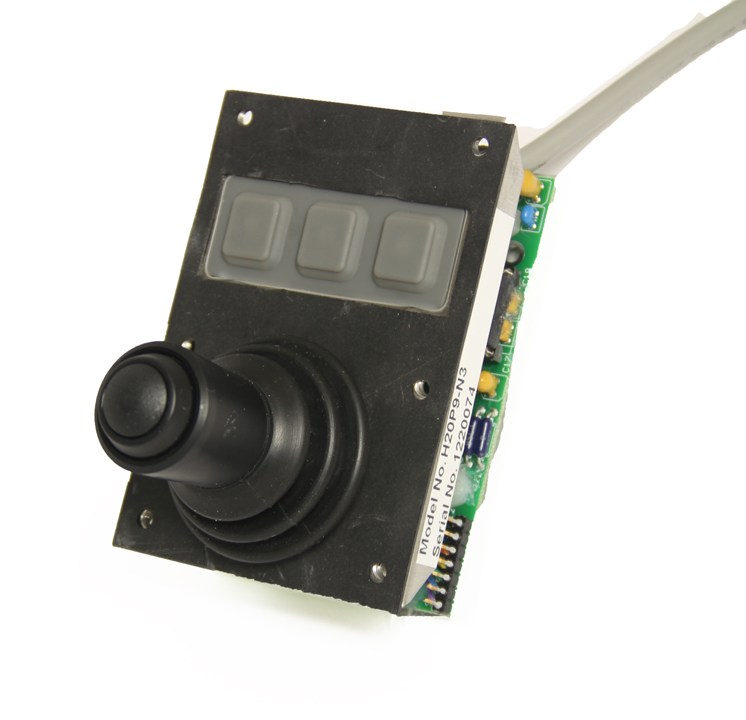

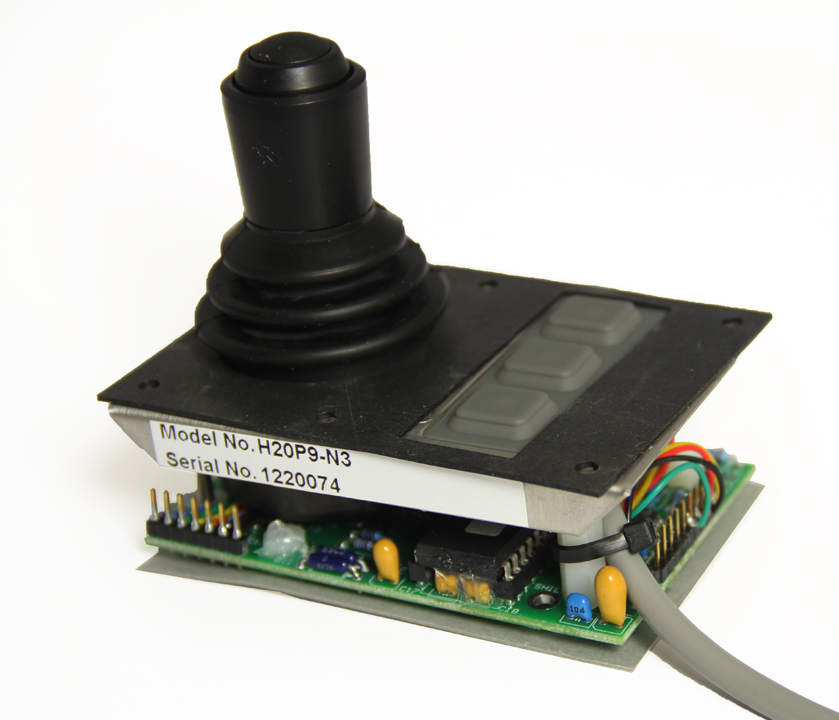

H2xU9T-Nx Series Industrial Motion Controller
Panel Mounted USB Joystick (FlightStick Technology)
Product Information
The H2XU9T-NX Series is a panel mount version of the motion contoller USB HID Compatible Joystick built as one complete assembly attached to a stainless steel bezel for simple under panel installation. A neoprene gasket is provided, which in combination with a six-screw mounting pattern, provides NEMA 4X (IP66) sealing in a small footprint. This design is perfect for harsh or wet environments requiring rugged computer controlled devices (USB HID Compatible Joystick). This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.
These standard industrial motion controller devices have all the features of the FlightStick technology family; including choice of ten joystick knobs, and are available in versions compatible with most Windows® Operating systems. The three button sealed switches perform up to three user-defined functions, allowing the operator to select or control motion. These motion controllers can be used in a variety of situations from camera motion control to stepper motor control.
The H2xU9T-Nx is optimized for quick installations that are suited for Systems Integrators.
CTI's custom panel mount motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
H2xU9T-Nx USB HID Compatible Joystick Motion Controller Technical Drawing USB Joystick (FlightStick) One & Two Axes Specification USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification USB Joystick (FlightStick) Testing Procedure How to select an Industrial Motion Controller Joystick knob optionsUnderstanding NEMA and IP Ratings
H2xU9T-Nx USB Joystick Motion Controller CAD Drawing (CAD DWG)
H2xU9T-Nx USB Joystick Motion Controller 3D Drawing (3D STEP) Specifications
Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) 25mA @ 24VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Water Tight | NEMA 4 (IP66) |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
| Optional Push Button Switch | 1,000,000 cycles maximum |
Shock
| Peak Value | 30g to 50g depending on knob & spring option |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5 - 25 Hz | 0.1 |
| 25 - 55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (FlightStick) One & Two Axes Specification
Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Drip Proof | Z Axis NEMA 12 (IP54), suitable for indoor use. |
| Water Resistant | X&Y Axes NEMA 4 (IP66) Sealing Boot |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
Shock
| Peak Value | 10 g |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5-25 Hz | 0.1 |
| 25-55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (Flightstick) N82 Three Axes Specification
Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Drip Proof | Z Axis NEMA 12 (IP54), suitable for indoor use. |
| Water Resistant | X&Y Axes NEMA 4 (IP66) Sealing Boot |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
Shock
| Peak Value | 10 g |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5-25 Hz | 0.1 |
| 25-55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (Flightstick) N84 Three Axes Specification
Pricing
Panel Mount Industrial USB FlightStick (HID Compliant Game Controller) Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
Panel Mount Industrial USB FlightStick (HID Compliant Game Controller) Pricing
H2xU1T-Nx Series Industrial Motion Controller
Panel Mounted USB Joystick (FlightStick Technology) w/ a Large Button
Product Information
The H2xU1T-Nx Series is a panel mount version of the motion contoller USB HID Compatible Joystick mounted to a stainless steel bezel for simple under-panel installation. A neoprene gasket is combined with a six-screw mounting pattern, providing NEMA 4X (IP66) sealing in a small footprint. This near-waterproof design is perfect for harsh or wet environments requiring rugged computer controlled devices (USB HID Compatible Joystick). This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.
The standard industrial motion controller devices have all the features of the FlightStick technology family, and when combined with the low-profile N5 joystick knob, it can be mounted to a panel and easily operated with just the thumb. The extra large sealed switch offers convenience, allowing the operator to quickly perform all motion movement functions; even while wearing gloves. A choice from ten different joystick knobs allows for unlimited possibilities to suit your application's unique needs.
The H2xU1T-Nx is optimized for quick installations that are suited for Systems Integrators.
CTI's custom panel mount motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
H2xU1T-Nx USB HID Compatible Joystick Motion Controller Technical Drawing USB Joystick (FlightStick) One & Two Axes Specification USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification USB FlightStick Testing ProcedureHow to select an Industrial Motion Controller Joystick knob options Understanding NEMA and IP Ratings H2xU1T-Nx USB Joystick Motion Controller CAD Drawing (CAD DWG)H2xU1T-Nx USB Joystick Motion Controller 3D Drawing (3D STEP)Specifications
Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) 25mA @ 24VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Water Tight | NEMA 4 (IP66) |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
| Optional Push Button Switch | 1,000,000 cycles maximum |
Shock
| Peak Value | 30g to 50g depending on knob & spring option |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5 - 25 Hz | 0.1 |
| 25 - 55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (FlightStick) One & Two Axes Specification
Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Drip Proof | Z Axis NEMA 12 (IP54), suitable for indoor use. |
| Water Resistant | X&Y Axes NEMA 4 (IP66) Sealing Boot |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
Shock
| Peak Value | 10 g |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5-25 Hz | 0.1 |
| 25-55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (Flightstick) N82 Three Axes Specification
Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks
| Power Consumption | 10mA @ 5VDC (typical) |
| Repeatability | > 1% |
| Accuracy | > 1% of Full Scale (typical) > 2% of Full Scale (worst case) |
Environmental
| Operating Temperature | 0º to 80º C (standard) -40º to 80º C (with “D” option) |
| Storage Temperature | -40º to 80º C |
| Relative Humidity | 100% non-condensing (with “Z” option) |
Sealing
| Drip Proof | Z Axis NEMA 12 (IP54), suitable for indoor use. |
| Water Resistant | X&Y Axes NEMA 4 (IP66) Sealing Boot |
Reliability
| MTBF | Greater than 100,000 hours |
| Life | 10,000,000 random deflections |
Shock
| Peak Value | 10 g |
| Pulse Duration | 11 ms |
| Waveform | Half Sine |
Vibration
| Frequency | Displacement (inches) |
| 5-25 Hz | 0.1 |
| 25-55 Hz | 0.03 |
Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
USB Joystick (Flightstick) N84 Three Axes Specification
Pricing
Panel Mount Industrial USB FlightStick (HID Compliant Game Controller) Pricing
Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device.
We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.
We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.
Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.
Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout.
Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.
To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
Panel Mount Industrial USB FlightStick (HID Compliant Game Controller) Pricing
