F-Series OEM Analog Joysticks
-

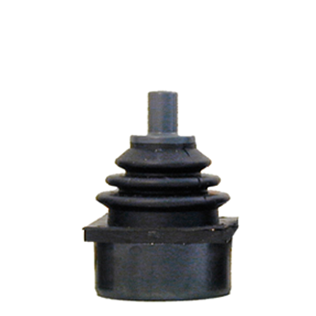

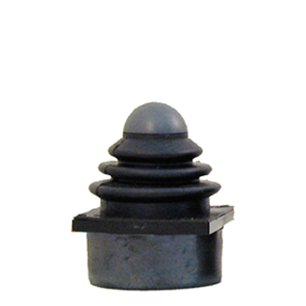

F1000-N5 Series OEM Analog Joystick
NEMA 4 (IP66) Miniature Industrial Joysticks
F1000-N5 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 1.38"(35.05mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

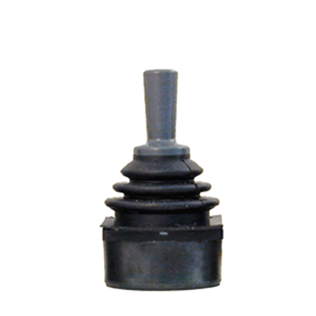

F1000-N2 Series OEM Analog Joystick
NEMA 4 (IP66) Miniature Industrial Joysticks
F1000-N2 Series OEM Analog Joystick
Product Description
Dimensions
Knob TypeAxes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 1.6"(40.64mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

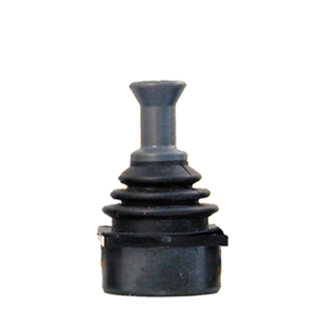

F1000-N24 Series OEM Analog Joystick
NEMA 4 (IP66) Miniature Industrial Joysticks
F1000-N24 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 2.1"(54.36mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

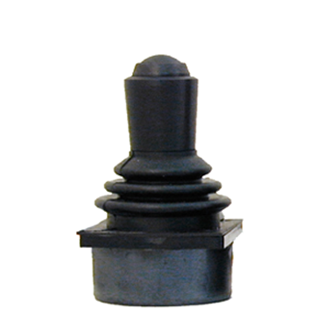

F1000-N54 Series OEM Analog Joystick
NEMA 4 (IP66) Industrial Joysticks
F1000-N54 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 2.1"(53.34mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

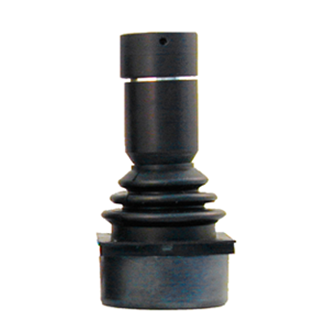

F1000-N3 Series OEM Analog Joystick
NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton
F1000-N3 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 2.1"(53.34mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Single Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-
F1000-N33 Series OEM Analog Joystick Joystick
NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton
F1000-N33 Series OEM Analog Joystick Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 3.1"(78.74mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Single Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

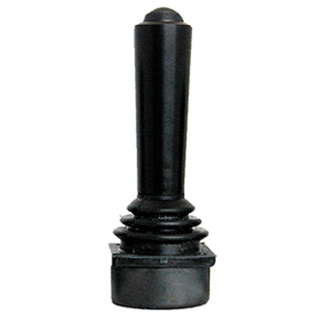

F1000-N63 Series OEM Analog Joystick
NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton
F1000-N63 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 4.03"(102.36mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ.)
Non-Push Button
Single or Dual Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

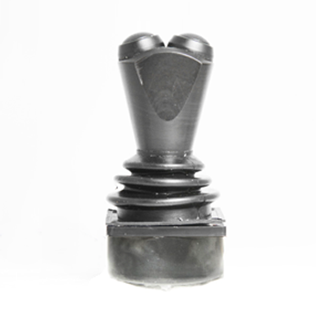

F1000-N34 Series OEM Analog Joystick
NEMA 4 (IP66) Industrial Joysticks w/ Dual Pushbutton
F1000-N34 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 2.6"(66.04mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Dual Push Button
Single, Dual, or Three Axes
NEMA 4 (IP66)Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-

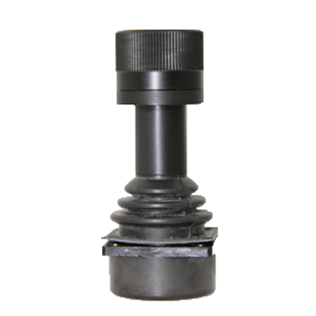

F1800-N82 Series OEM Analog Joystick
NEMA 12 (IP54) Three Axes Industrial Joysticks
F1800-N82 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 2.6"(66.04mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Three Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
-
F1800-N82 Series OEM Analog Joystick
NEMA 4 (IP66) Three Axes Industrial Joysticks
F1800-N82 Series OEM Analog Joystick
Product Description
Dimensions
Knob Type
Axes
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Life
CertificationsAbove Panel: 3.2"(81.28mm)
Below Panel: 0.87" (22.10mm)
Base: 1.65" SQ.. (41.91mm SQ..)
Non-Push Button
Three Axes
NEMA 4 (IP66)
Seven input/output voltage options
0º to 80º C
-40º to 80º C
10,000,000 random deflections
FCC Class A and B, CE, RoHS
For more detailed information head to our full site via desktop computer or tablet or Call us now
