OEM KEYBOARDS NEMA 4 (IP66)
-

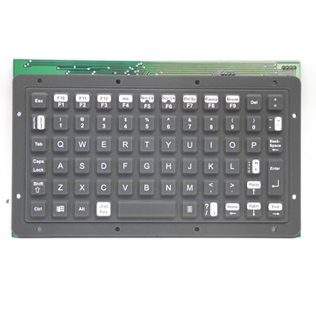

KI6800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
KI6800 OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L8"xW4.89"xD0.50"
L203.2mm xW124.2mm xD12.7mmSmall
6oz. (170g)
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
-

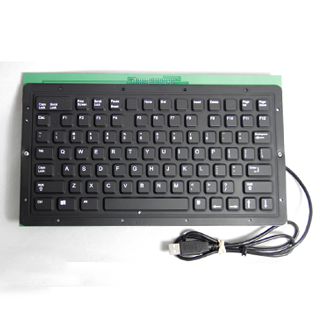

KI8800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
KIO8800 OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L11.75"xW6.35"xD0.98"
L0mm xW0mm xD0mmMid-Size
0oz. (0g)
NEMA 4(IP66)
None
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
-

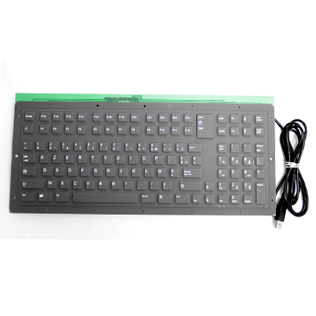

KI9800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Industrial Keyboards
KI9800 OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L15.45"xW7.12"xD0.98"
L0mm xW0mm xD0mmFull-Size
0oz. (0g)
NEMA 4 (IP66)
None
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
-

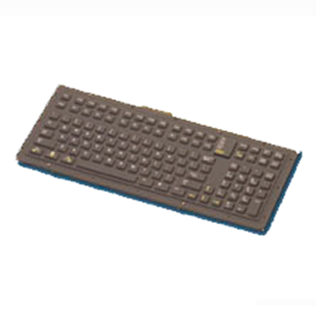

KIA9800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ ArrowMouse™
KIA9800 OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Mouse Pointer
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L15.45"xW7.12"xD0.98"
L0mm xW0mm xD0mmFull-Size
0oz. (0g)
ArrowMouse™
NEMA 4 (IP66)
None
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
-
KIO6800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ OrbitalMouse®
KIO6800 Series OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Mouse Pointer
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L8"xW4.46"xD0.51"
L203.2mm xW113.3mm xD13.0mmSmall
6oz. (170g)
OrbitalMouse®
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
-
KIO7800 Series OEM Keyboard
NEMA 4 (IP66) Sealing OEM Keyboards w/ OrbitalMouse®
KIO7800 OEM Keyboard
Product Description
Dimensions
Keyboard Size
Weight
Mouse Pointer
Sealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Keys
Elastomer keys
L11.625"xW4.856"xD0.73"
L0mm xW0mm xD0mmMid-Size
12oz. (340g)
OrbitalMouse®
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
USB or PS/2-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
101/104 Keys
Rated for up to 10 million cycles
