Panel Mount Trackballs
-

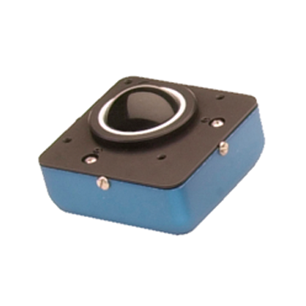

T6000 Series Industrial Trackball
1.3" (33mm) Panel Mount Trackball Mouse Pointers
T6000 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL2.50" x W2.50" x D1.45"
L0mm x W0mm x D0mm
1.3" (33mm)
416 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
100g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
-

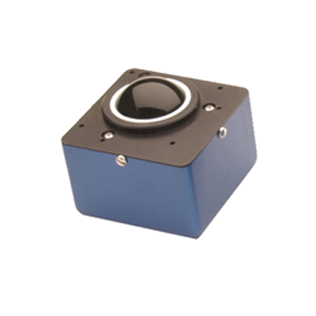

T7000 Series Industrial Trackball
1.5" (38mm) Panel Mount Trackball Mouse Pointers
T7000 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL2.63" x W2.63" x D2.22"
L0mm x W0mm x D0mm
1.5" (38mm)
480 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
30g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
-

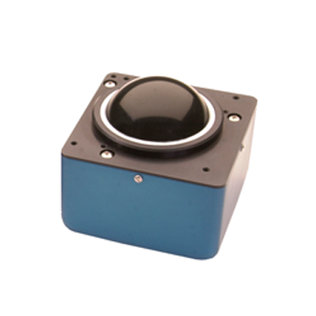

T4000 Series Industrial Trackball
3.0" (76mm) Panel Mount Trackball Mouse Pointers
T4000 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL4.25" x W4.25" x D3.75"
L0mm x W0mm x D0mm
3.0" (76mm)
640-1280 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
6g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
-

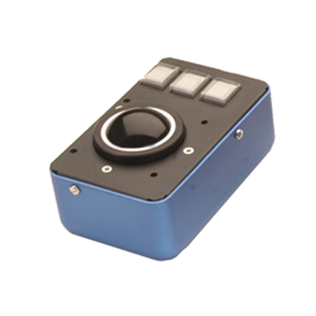

T70X3 Series Industrial Trackball
1.5" (38mm) Panel Mount Trackball w/ 3 Sealed Switches
T70X3 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL4.50" x W2.75" x D2.34"
L0mm x W0mm x D0mm
1.5" (38mm)
480 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
30g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
-

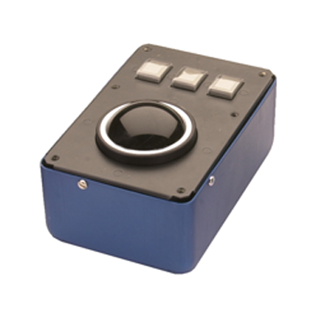

T10X3 Series Industrial Trackball
2.0" (50mm) Panel Mount Trackball w/ 3 Sealed Switches
T10X3 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL5.25" x W3.50" x D2.91"
L0mm x W0mm x D0mm
2.0" (50mm)
640 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
10g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
-

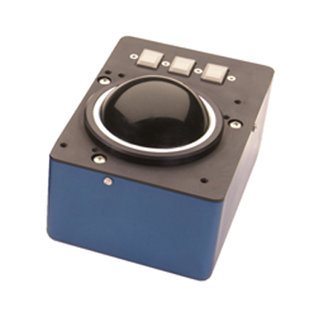

T40X3 Series Industrial Trackball
3.0" (76mm) Panel Mount Trackball w/ 3 Sealed Switches
T40X3 Series Industrial Trackball
Product Description
Dimensions
Ball DiameterResolution
Sealing Rating
InterfaceOperating Temperature
Storage Temperature
Shock
Vibaration
MTBF
CertificationsL6.00" x W4.25" x D3.78"
L0mm x W0mm x D0mm
3.0" (76mm)
640 cts/rev
NEMA 12 (IP54)
USB
0º to 70º C
-40º to 80º C
6g, 11ms - 1/2 sine
5-55HZ @ 0.013” DA
100,000 hours per MIL-HDBK-217F
FCC Class A and B, CE, RoHS
