Industrial Sealed Switches
-
C2001A Series Industrial Switch
NEMA 4 (IP66) Single-Button OEM Switch Assembly
C2001A Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L0.77"xW2.260"xD0.140"
L0mm xW0mm xD0mmSingle
0
NEMA 4 (IP66)
None
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-
C200XA Series Industrial Switch
NEMA 4 (IP66) Three-Button OEM Switches Assembly
C200XA Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L0.77"xW2.260"xD0.140"
L0mm xW0mm xD0mmThree
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-
C2208A Series Industrial Switch
NEMA 4 (IP66) OEM Three-Button Sealed Switch
C2208A Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L0.77"xW2.260"xD0.140"
L0mm xW0mm xD0mmThree
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-

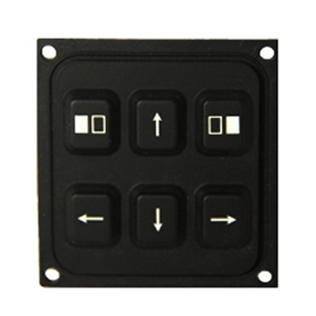

C6010 Series Industrial Switch Assembly
NEMA 4 Six Button Industrial Switch Assembly
C6010 Series Industrial Switch Assembly
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L1.93"xW1.83"xD0.628"
L0mm xW0mm xD0mmSix
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-

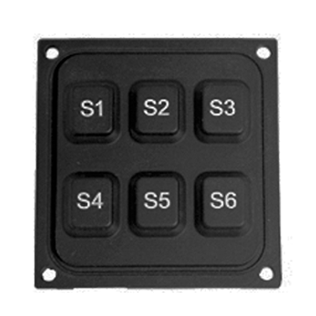

C6020 Series Industrial Switch
NEMA 4 Six Button Industrial Switches Assembly
C6020 Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L L1.93"xW1.83"xD0.628"
L0mm xW0mm xD0mmSix
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-
C920X Series Industrial Switch
NEMA 4 (IP66) OEM Three-Button OEM Sealed Switch
C920X Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L0.77"xW2.260"xD0.140"
L0mm xW0mm xD0mmThree
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
-
C900X Series Industrial Switch
NEMA 4 (IP66) OEM Three-Button Waterproof Switch
C900X Series Industrial Switch
Product Description
Dimensions
Buttons
WeightSealing Rating
Backlight Option
InterfaceOperating Temperature
Storage Temperature
Vibration
Shock Rating
Certifications
Life
L0.77"xW2.260"xD0.140"
L0mm xW0mm xD0mmThree
0
NEMA 4 (IP66)
Yes (Red and Green (NVIS)
Ribbon Cable-40º to 80º C
-40º to 80º C
10-55 Hz@ 0.013 DA
50g 11msec. half sine, three axes
FCC Class A, CE, RoHS
Rated for up to 10 million cycles
